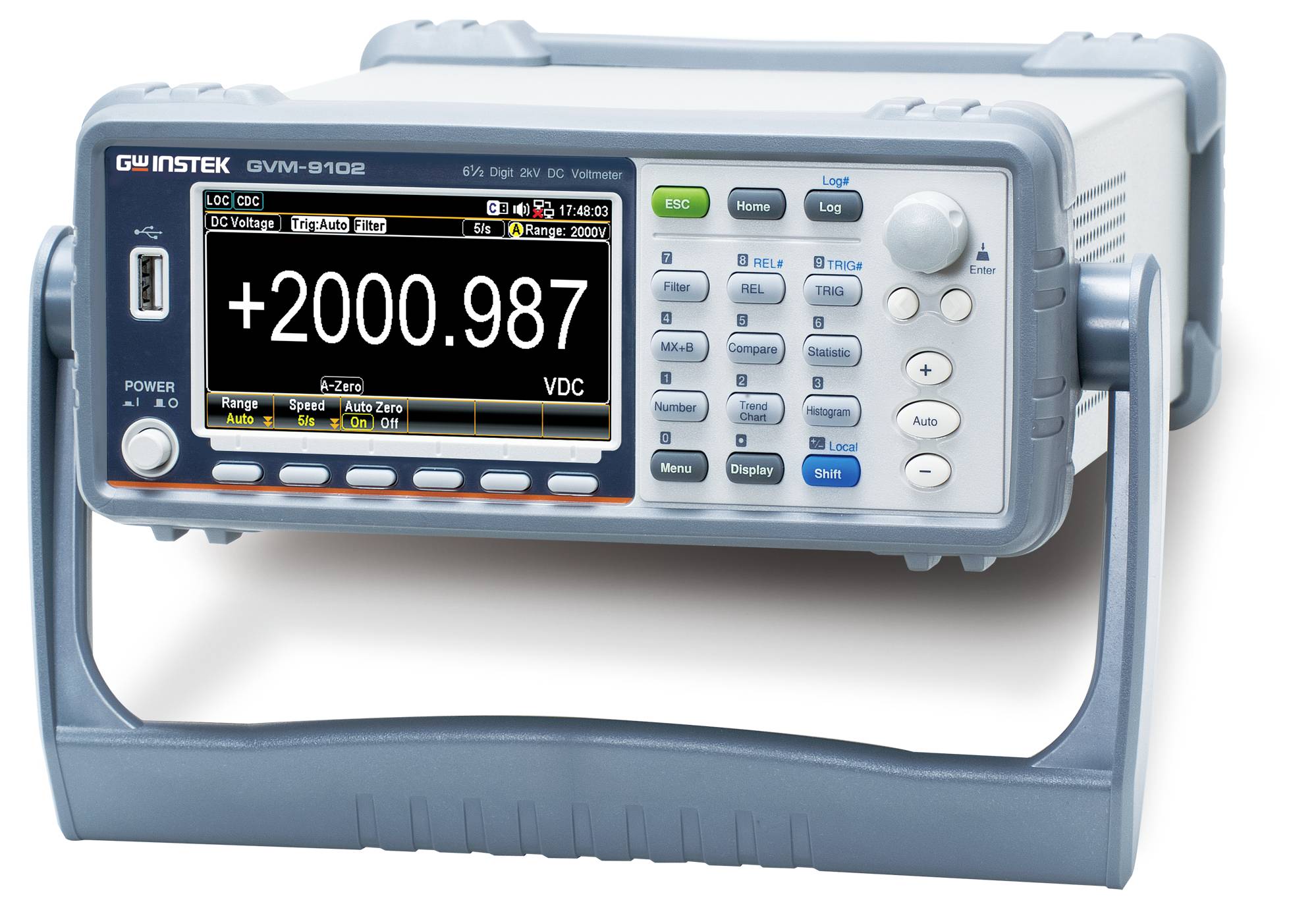

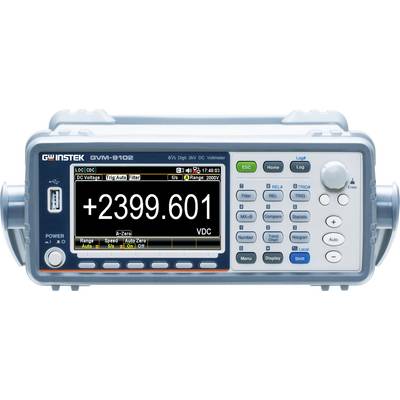

GW Instek GVM-9102 Bench multimeter Digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 936.97 / piece)
€ 936.97
plus VAT.
Highlights & Details

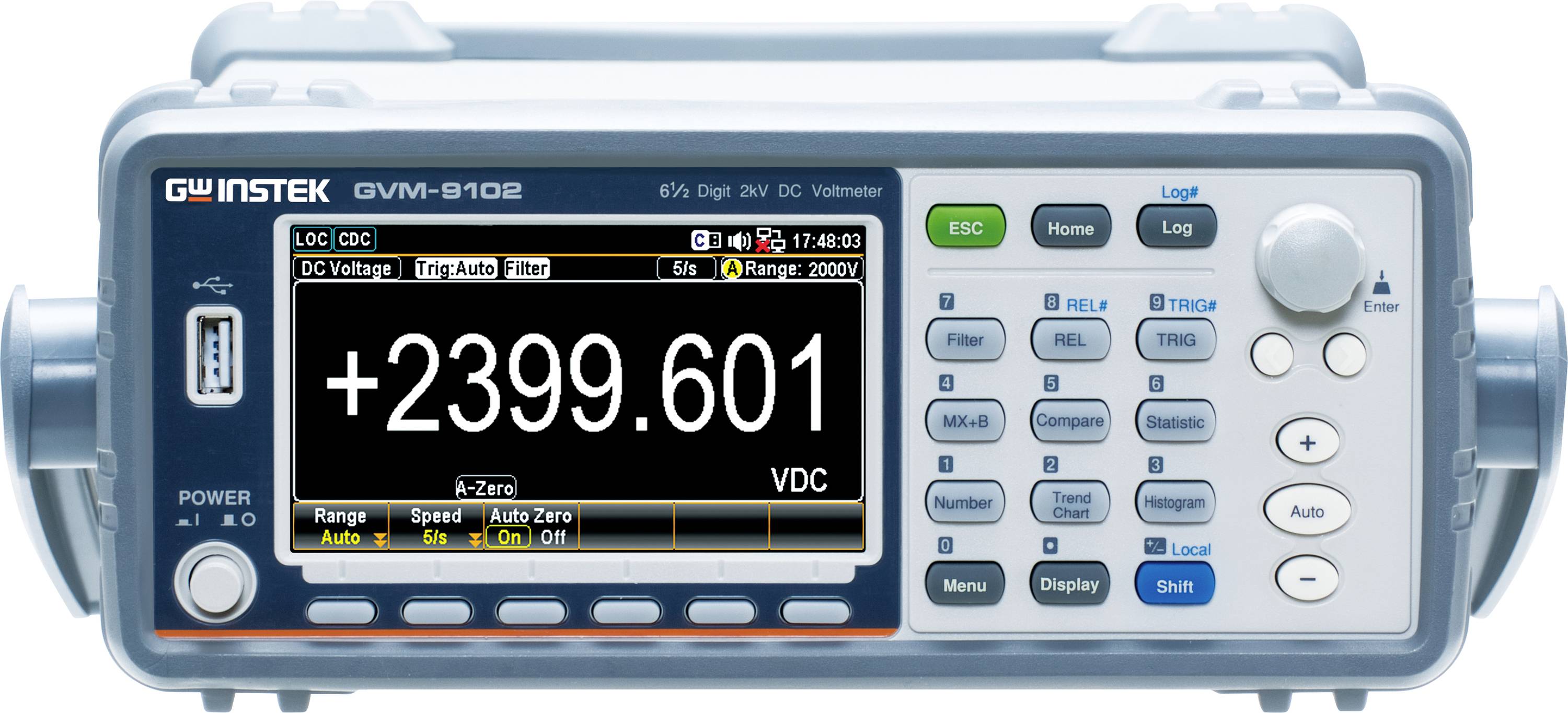

GW Instek GVM-9102 6 1/2 digital 2 kV DC voltmeter
- Outstanding precision: The GVM-9102 provides a basic DC voltage accuracy of 0.01%, WAS ensures reliable results even in the most demanding applications.
- Fast sampling rate: With a sampling rate of up to 10 k measurements per second, the GVM-9102 can capture data quickly and efficiently, WAS is crucial in dynamic measurement environments.
- Intuitive graphical display: The 4.3-inch color TFT graphic display allows you to visualize data in various modes, including histograms, bar graphs, and trend charts, WAS makes it easy to analyze and quickly understand the entire measurement process.
- Versatile mathematical and statistical functions: The device is equipped with 6 mathematical functions (dB/dBm/Compare/MX+B/Percent and 1/X) as well as statistical functions (Min/Max/Average/P-P/STDEV), WAS simplifies complex data analyzes considerably.
- Extensive communication options: Standard interfaces include USB (host/device), RS-232C, LAN and digital I/O, as well as an optional GPIB interface that can be installed on-site by the customer. This ensures easy integration into different systems.
- High Voltage Measurement: The GVM-9102 can measure DC voltages up to 2400 V without the need for attenuators, effectively reducing measurement losses and errors.
- Internal memory: An internal storage capacity of 100 k measurements allows data to be stored for further analysis and the generation of trend charts and histograms.
- Multilingual support: The device provides a multi-language user interface, including English, Traditional Chinese, Simplified Chinese, Japanese, and Korean, WAS shortens the usage and training time.
Technical specifications
- Product dimensions, height
- 88 mm (without bumper)
- 107 mm (with bumper)
- Product dimensions, width
- 220 mm (without bumper)
- 266.9 mm (with bumper)
- Product dimensions, length
- 276.6 mm (without bumper)
- 301.8 mm (with bumper)

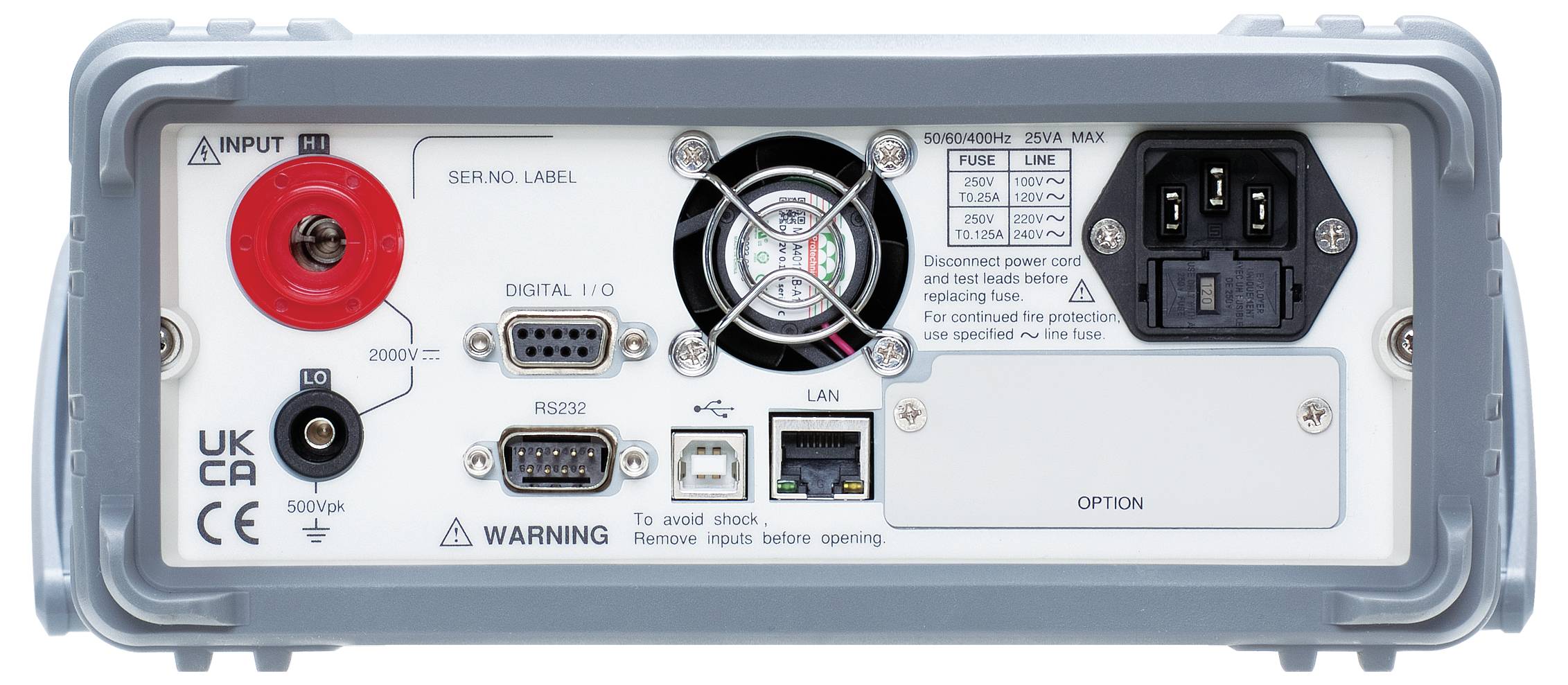

- Interfaces
- USB host
- USB device
- Digital I/O
- GPIB (optional)
- Power supply (details)
- AC 100 V / 120 V / 220 V / 240 V ± 10 %
- Frequency 50 Hz / 60 Hz / 400 Hz ± 10%
- Max. 25 VA
- 4.3" TFT graphics LCD
- Sampling rate: 10 k Measurements/Sec
- Internal memory 100 k measured values
- Graphical display with histogram, bar display and trend diagram
- 6 mathematical functions (dB/dBm/Compare/MX+B/Percent and 1/X)
- Statistical functions (Min/Max/Average/P-P/STDEV)
- LabVIEW driver
- Multilingual User Interface (English, Traditional Chinese, Simplified Chinese, Japanese, Korean)
- USB memory function for storing screenshots (BMP) or data from internal memory
- Real-time clock/calendar with replaceable battery (CR-2032)
- Input LO to earth limited to 500 Vpk
- Input protection 2400 V in all areas
- Input impedance 30 MΩ ± 1% for 200 V and 2000 V ranges
- Sigma-Delta-A/D-converter meas. Method
- Voltage reading range DC (min.)
0 V
- Product type
Bench multimeter
- Voltage DC reading range (max.)
2400 V
- Basic accuracy
0.01 %
- Measurement type (details)
Invasive
- Interfaces
RS232C
LAN
- Weight
3.50 kg
Manufacturer's standards (no certificate)
- Voltage metering
DC
- Type
GVM-9102
- Display
Digital
Documents & Downloads
Datasheet
Datasheet 3436341 GW Instek GVM-9102 Bench multimeter Digital
User & Safety Instructions
User & Safety Instructions 3436341 GW Instek GVM-9102 Bench multimeter Digital
Information
Information 3436341 GW Instek GVM-9102 Bench multimeter Digital
Conformity certificate
Conformity certificate 3436341 GW Instek GVM-9102 Bench multimeter Digital
Description
Precision and efficiency of DC voltage measurements
Discover the GW Instek GVM-9102, a revolutionary 6½-digit 2 kV DC voltmeter that sets new standards for precise DC voltage measurements. Developed for highest accuracy and versatility, the GVM-9102 is the ideal partner for engineers and technicians, who work with energy storage devices, Photovoltaic devices and DC power supplies.
