GW Instek PSW 800-2.88 Bench PSU (adjustable voltage) 0 - 800 V DC 0 - 2.88 A 720 W No. of outputs 1 x
EAN:
Part number:
Item no:
2 Piece(s)
Sales and shipping:
Number
Total (€ 2,209.24 / piece)
€
Only 2 Piece(s) available
Highlights & Details

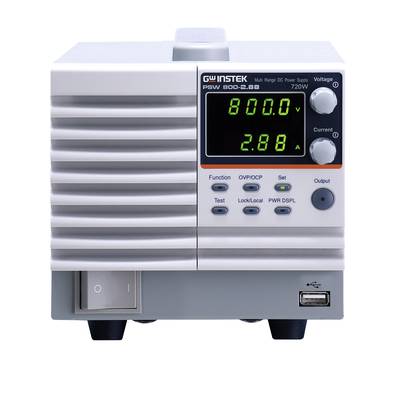

Programmable laboratory power supply PSW 800-2.88
- No. of outputs 1 x
- 0 - 800 V DC / 0 - 2.88 A
- 720 W
Technical specifications
- Type
PSW 800-2.88
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
720 W
- Technology
SMPSU
- Dim
(W x H x D) 142 x 124 x 350 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Weight
5.3 kg
- Type
Desktop
- Output voltage (max.)
800 V DC
- Output voltage (min.)
0 V DC
- Max. output current
2.88 A
- Output current (min.)
0 A
- Mains control
0.05% + 5 mV
- Type
Switched Mode
- Width
142 mm
- Height
124 mm
- Depth
350 mm
- Input voltage
85 - 265 V AC
- Output voltage 1
0 - 30 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339683 GW Instek PSW 800-2.88 Bench PSU (adjustable voltage) 0 - 800 V DC 0 - 2.88 A 720 W No. of outputs 1 x
User & Safety Instructions 3339683 GW Instek PSW 800-2.88 Bench PSU (adjustable voltage) 0 - 800 V DC 0 - 2.88 A 720 W No. of outputs 1 x
Information
Information 3339683 GW Instek PSW 800-2.88 Bench PSU (adjustable voltage) 0 - 800 V DC 0 - 2.88 A 720 W No. of outputs 1 x
Description
The devices of the PSW-series are multi-area laboratory power supply with an output. The multi-range function allows a fast and flexible adjustment of output voltage and current within the output power of the device. There can be up to 3 power supplies in parallel, and up to 2 units. To do this, you can also devices of the PSW-series with different output values are combined. This creates a variety of combination possibilities and thus offers the right solution for many applications. By default, the devices of the PSW-series with a USB and LAN interface.
This text is machine translated.
This text is machine translated.
Features
- Serial and Parallel switchable
- Adjustable Rise time
- Interfaces: LAN, USB
- CV/CC-priority
- High efficiency.
Scope of delivery
- DC bench power supply
