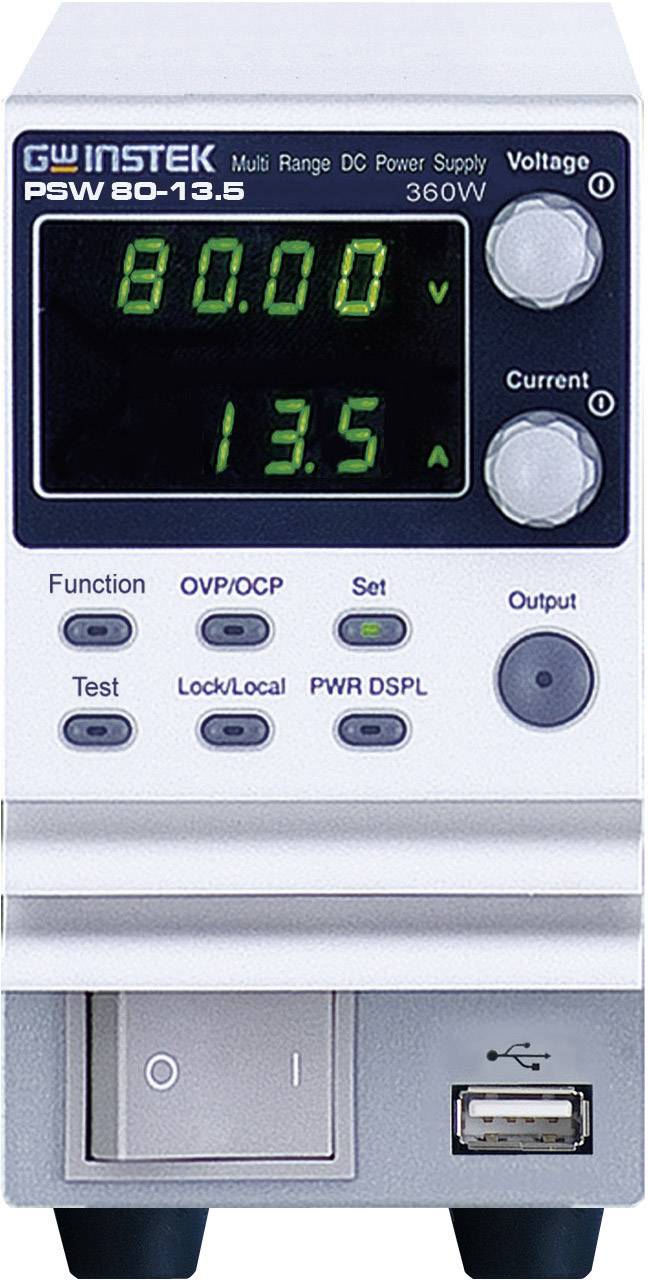

GW Instek PSW80-13.5 Bench PSU (adjustable voltage) 0 - 80 V DC 0 - 13 A 360 W No. of outputs 1 x
EAN:
Part number:
Item no:
Total (€ 1,419.33 / piece)
€ 1,419.33
plus VAT.
14-day return policy included
Highlights & Details
Programmable Laboratory Power Supply PSW 80-13.5
- No. of outputs 1 x
- 0 - 80 V DC / 0 - 13 A
- 360 W
Technical specifications
- Type
PSW80-13.5
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
360 W
- Technology
SMPSU
- Dim
(W x H x D) 71 x 124 x 350 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Weight
3 kg
- Type
Desktop
- Output voltage (max.)
80 V DC
- Output voltage (min.)
0 V DC
- Max. output current
13 A
- Output current (min.)
0 A
- Mains control
0.05% + 5 mV
- Type
Switched Mode
- Width
71 mm
- Height
124 mm
- Output current 1
0 - 13.5 A
- Depth
350 mm
360 W
- Input voltage
85 - 265 V AC
- Output voltage 1
0 - 80 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 515689 GW Instek PSW80-13.5 Bench PSU (adjustable voltage) 0 - 80 V DC 0 - 13 A 360 W No. of outputs 1 x
Download
Download 515689 GW Instek PSW80-13.5 Bench PSU (adjustable voltage) 0 - 80 V DC 0 - 13 A 360 W No. of outputs 1 x
Download 515689 GW Instek PSW80-13.5 Bench PSU (adjustable voltage) 0 - 80 V DC 0 - 13 A 360 W No. of outputs 1 x
Description
The devices of the PSW-series are multi-area laboratory power supply with an output. The multi-range function allows a fast and flexible adjustment of output voltage and current within the output power of the device. There can be up to 3 power supplies in parallel, and up to 2 units. To do this, you can also devices of the PSW-series with different output values are combined. This creates a variety of combination possibilities and thus offers the right solution for many applications. By default, the devices of the PSW-series with a USB and LAN interface.
This text is machine translated.
This text is machine translated.
Features
- Serial and Parallel switchable
- Adjustable Rise time
- Interfaces: LAN, USB
- CV/CC-priority
- High efficiency.
Scope of delivery
- DC bench power supply
