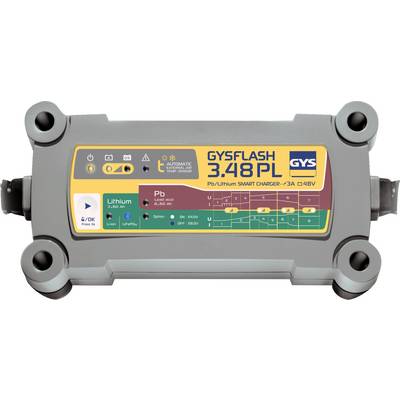

GYS GYSFLASH 3.48 PL 027893 Automatic charger 48 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 3 Piece(s) available
Highlights & Details
GYS GYSFLASH 3.48 PL 027893 Automatic charger 48 V
- UVP Wake-up functionEBS technologyTrickle charge
Technical specifications
- Battery capacity charging 6 - 60 Ah (Pb) / 3 - 60 Ah (LiFePO4)
- IUoU characteristic
- 7 (Pb) / 8 (LiFePO4) charging modes
- Product type
Automatic charger
- Dim
(L x W x H) 221 x 111 x 58 mm
- Battery voltage
48 V
- Operating voltage
230 V / AC
- Suitable for
VRLA AGM
SLA
Lead acid
VRLA AGM
PbCa
Lithium
- Weight
1100 g
- Width
111 mm
- Height
58 mm
- Length
221 mm
IP65
- Cable length
1.90 m
Documents & Downloads
Datasheet
Datasheet 2758259 GYS GYSFLASH 3.48 PL 027893 Automatic charger 48 V
User & Safety Instructions
User & Safety Instructions 2758259 GYS GYSFLASH 3.48 PL 027893 Automatic charger 48 V
Description
The GYSFFLASH 3.48 PL is a charger of the new generation for charging all 48 V lead-acid, lithium-ion standard (NMC, NCA, Li-Po, LCO, MCO, etc.) or lithium iron phosphate (LiFePO4) batteries. It can be used in vehicles for leisure time (electric bicycles, electric scooters, electric scooters, electric skateboards, electric e-boards, etc.), Stationary systems with uninterrupted power supply (medical devices, servers, alarm systems, etc.), robots, drones, Emergency lighting, etc. It has 5 different intelligent charging characteristics.
This text is machine translated.
This text is machine translated.
Features
- Optimized charge retention: The charger can remain connected to the battery without interruption and riskExtends the durability and performance of lead-acid, lithium (LFP) and lithium-ion batteriesA temperature sensor measures the ambient temperature for complete charging in summer as well as in winterMonitoring-free charging cycles: Lead-acid in 7 levels, lithium in 8 stages with additional EBS technology (Equalising Battery System) for perfect balancing of the battery cellsUVP (undervoltage protection) Wake-up function: Enables in a lithium battery to deactivate the UVP protection after deep discharge and start the charging automaticallyProtection of vehicle electronics: Protection against short circuit, reverse polarity and overvoltage. Anti-spark systemAutomatic standby mode with battery disconnectedIntegrated temperature sensor prevents the internal electronics from overheatingUser-friendly control panel to prevent misuseCompact design, light and portableWall mounting possibleCompletely dust and water proof casing (IP65)
Scope of delivery
- GYSFLASH 3.48 PL
- Eyelets - M6 (45 cm)
- SAE connection (145 cm)
- User manual.
