Buy GYS Gysflash 6.12 029729 Automatic charger 12 V 6 A

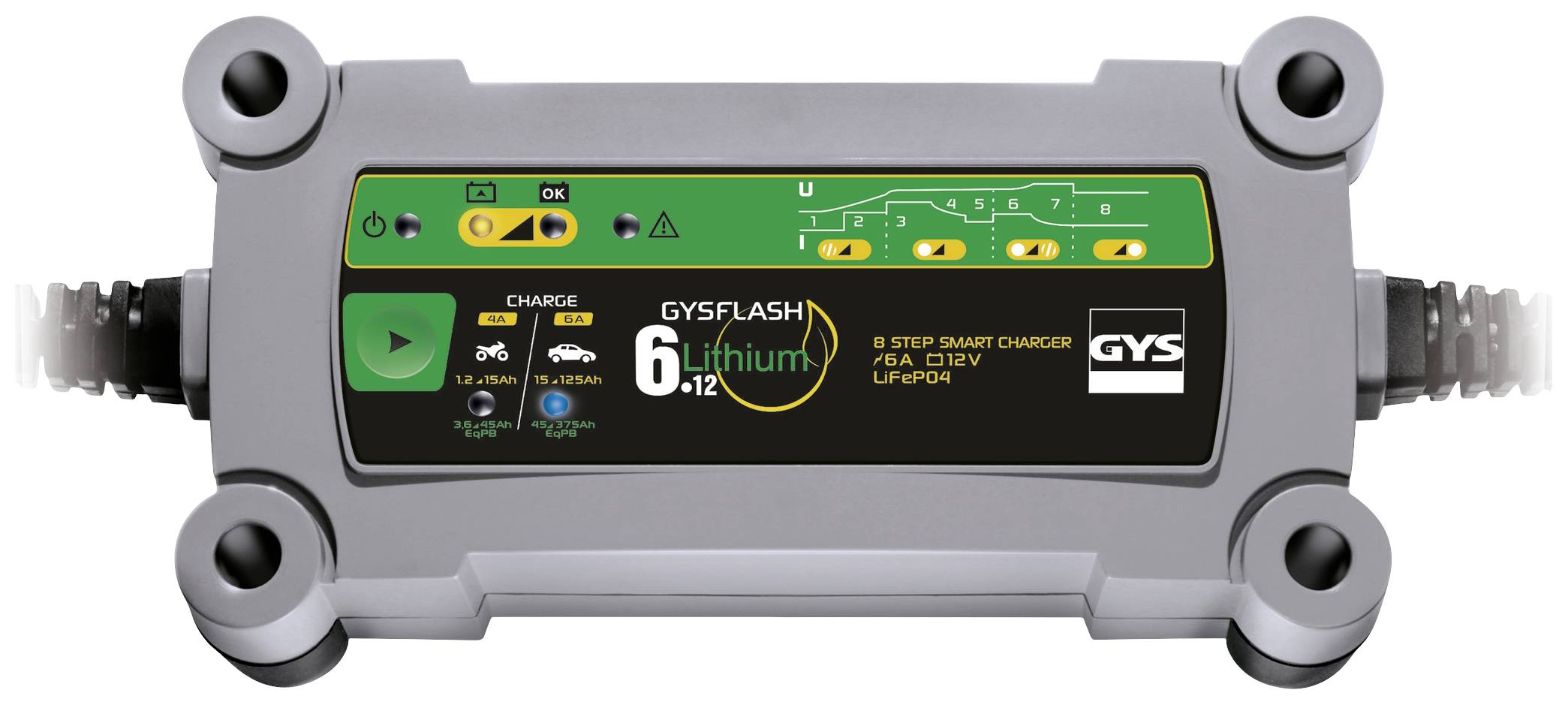

Car battery charger with indicator lights and control buttons, GYSFLASH 6.12 Lithium, for 12V batteries.

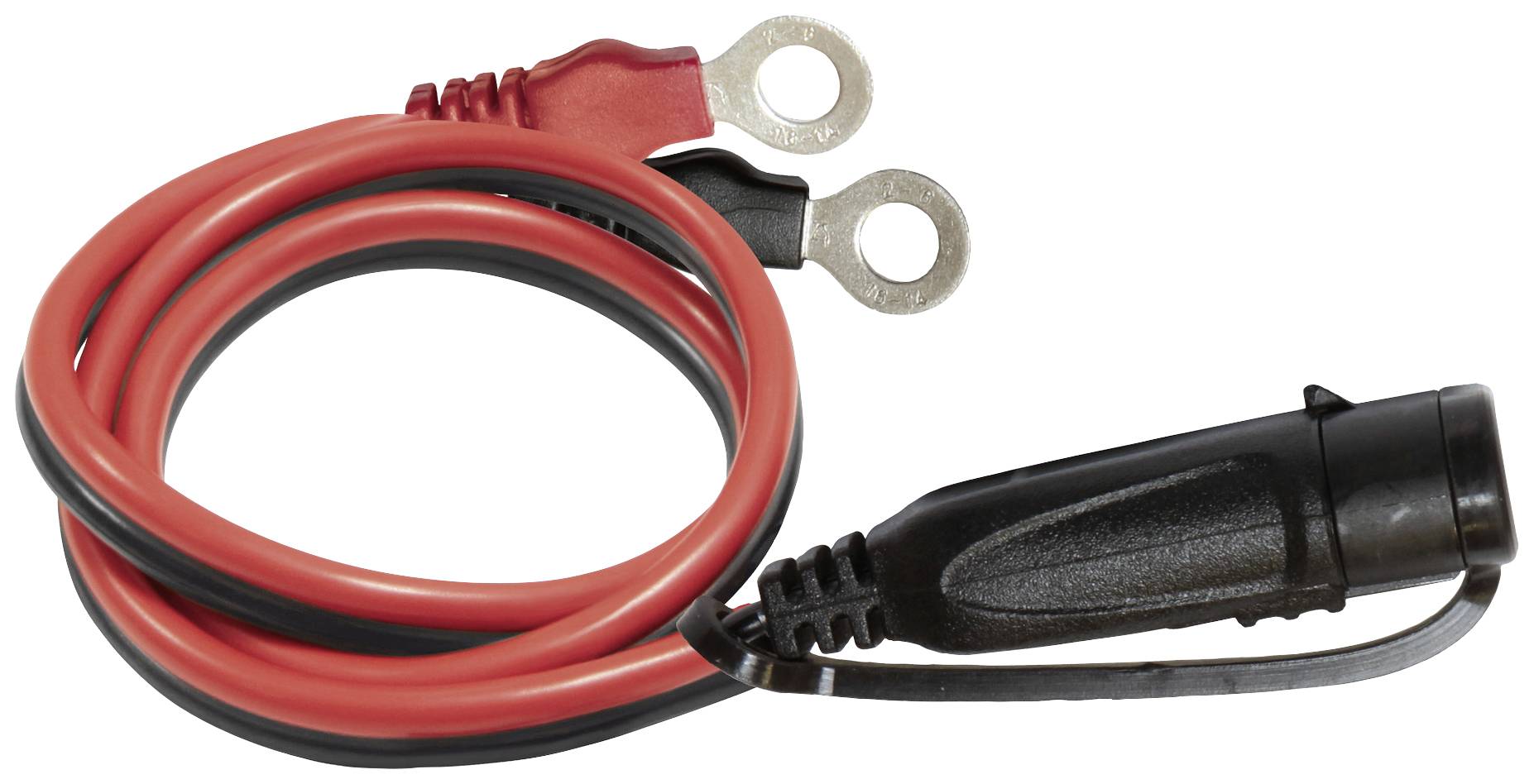

Red and black power cable with clips and a black connection plug, coiled and ready for use.

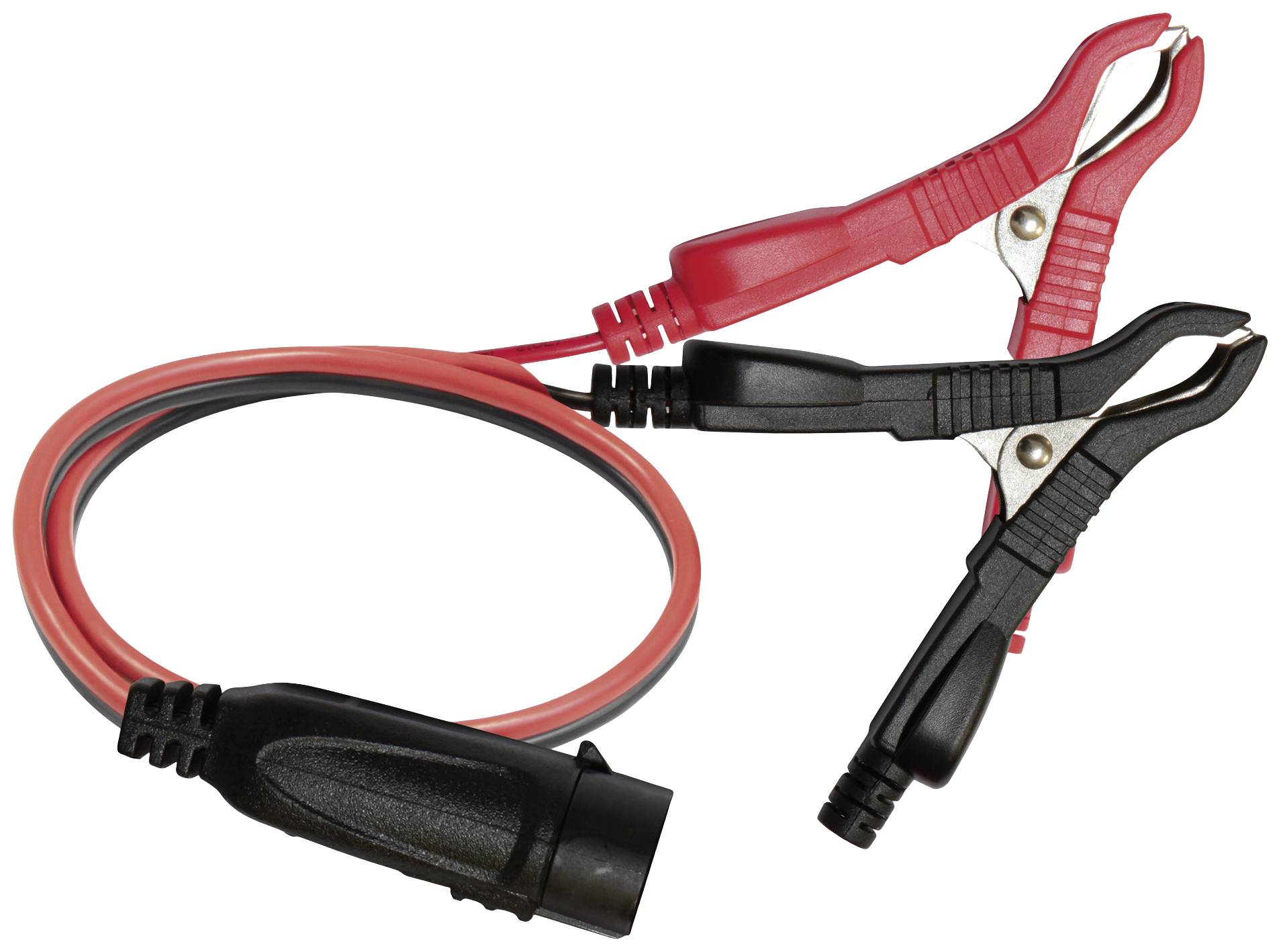

A red and a black jump lead with clips, used for connecting car batteries.

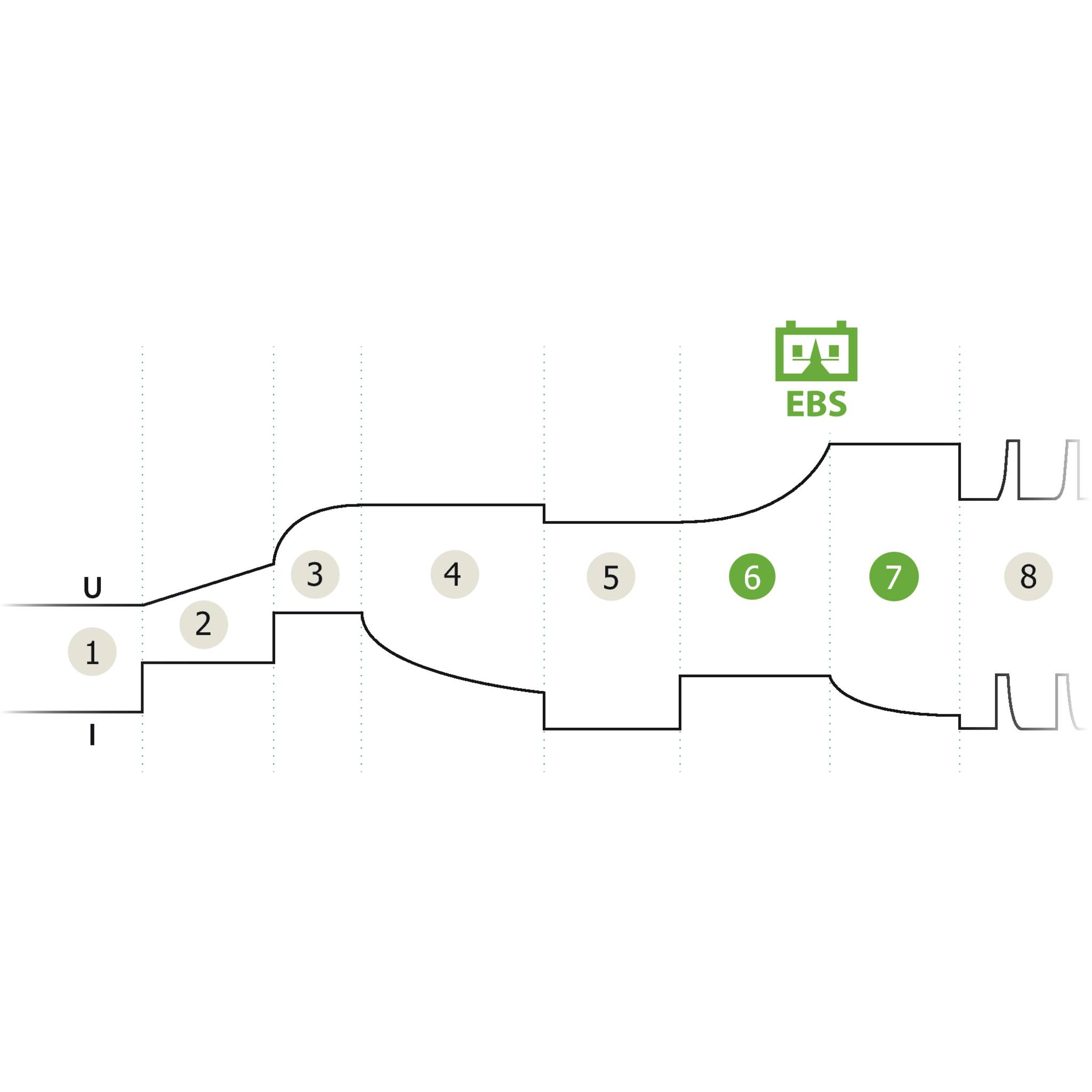

'Diagram of an eight-stage process with EBS highlight in stages 6 and 7. Stages 1 to 8 numbered from left to right.'

1/5

Datasheet (PDF)

Dispatches on Thu, 22 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 88.23 / piece)

€ 88.23

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Automatic charger

Dim: (L x W x H) 190 x 100 x 52 mm

Battery voltage: 12 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 125 Ah

Recommended battery capacity at 12 V min.: 1.2 Ah

Suitable for: Lithium

Weight: 770 g

Features: Battery test
Refresher/regenerator
Charge monitoring
Battery life protection

Charging current at 12 V: 6 A

Width: 100 mm

Height: 52 mm

Length: 190 mm

: IP65

Cable length: 2 m

Documents & Downloads

Datasheet

Datasheet 2784267 GYS Gysflash 6.12 029729 Automatic charger 12 V 6 A

User & Safety Instructions

User & Safety Instructions 2784267 GYS Gysflash 6.12 029729 Automatic charger 12 V 6 A

Information

Information 2784267 GYS Gysflash 6.12 029729 Automatic charger 12 V 6 A

Description

The Gysflash 6.12 Lithium (6A) is a charger for 12V lithium iron phosphate (LiFePO4) batteries. The eight-stage charging curve guarantees fast and safe charging of the lithium battery. Suitable for lithium iron phosphate 12 V batteries from 1.2 to 125Ah, it can also be used for charging up to 170Ah. To preserve the charging during hibernation, the device can stay connected permanently and thus guarantees a trouble-free start after re-installation. Auto restart function in case of power failure with storage of settings. CAN bus compatibility for motorcycles with 12V connection: Unattended and safe charging without ignition key (optional cable).

This text is machine translated.

Features

Special, 8-stage charging curve for monitoring-free charging2 charging modesUVP Wake-up function: Activates a battery in the protection after deep discharge and automatically starts the charging processThe device can remain permanently connected to preserve the charging during winterAuto restart function in case of power failure with storage of settingsCAN bus compatibility for motorcycles with 12V connectionSafe and unattended charging without ignition key (optional cable)EBS (Equalising Battery System) -Technology for a perfect balancing of the battery cellsIn-built temperature sensor for protecting the internal electronicsSimple, tamper-proof user interfaceProtection of vehicle electronicsProtection against short circuitsPolarity reversal and overload protectionAnti-spark systemAuto standby when battery is not connectedUltra-compact and light designConnection with water-tight quick couplingDust and water proof casing
