Buy GYS PBT 550 Car battery tester 12 V

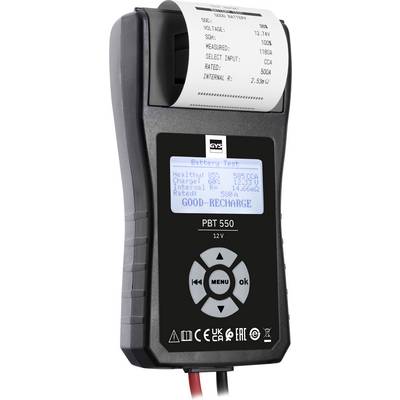

Handheld GYS battery tester displaying a printed and backlit LCD battery test result, with 'GOOD-RECHARGE' visible on the screen.

Handheld battery tester with paper printout and red-black alligator clips attached by cables.<br>

Battery tester with red and black alligator clips attached by cables to a handheld black device on a white background.

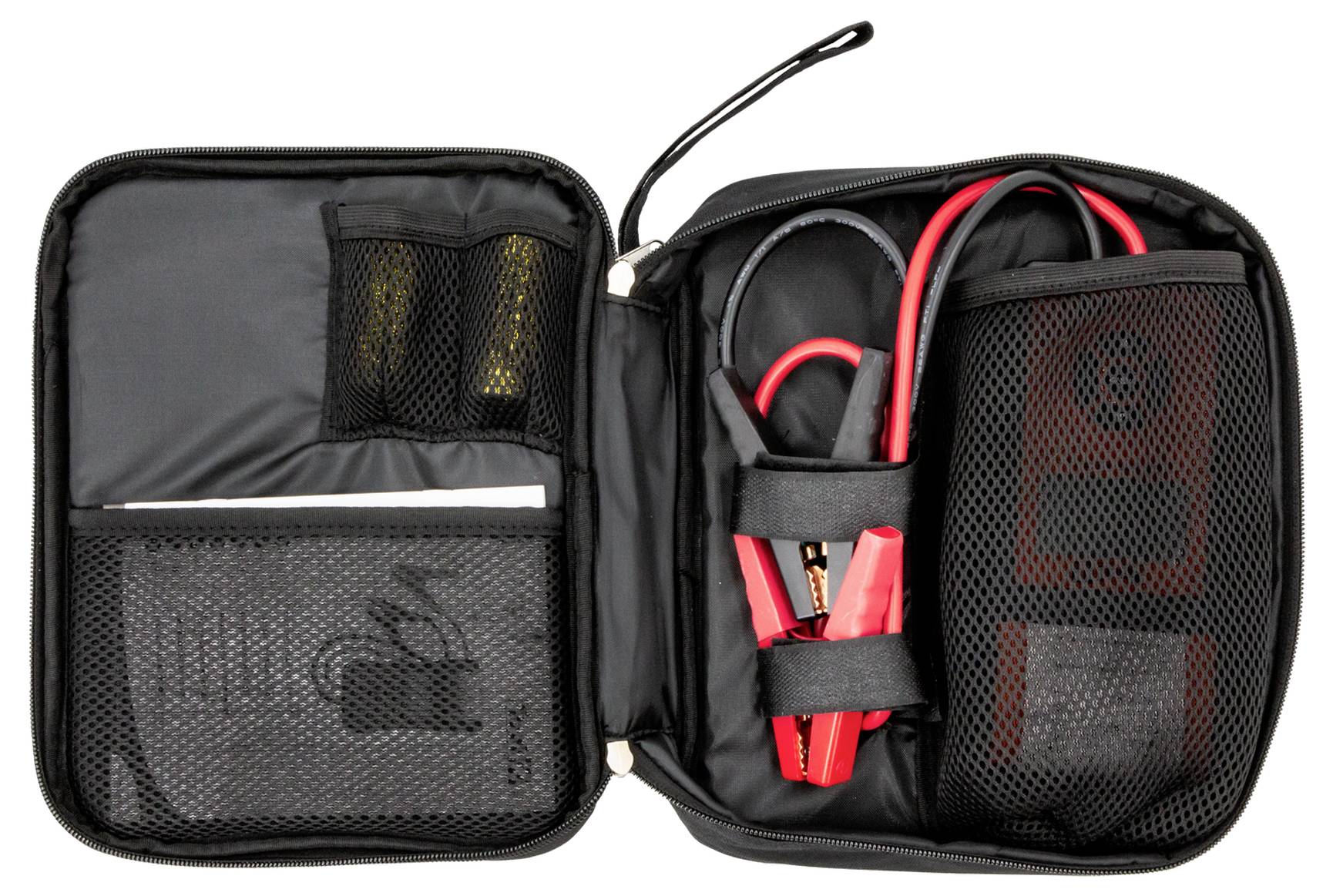

Open black zippered carrying case with mesh pockets holding red and black jumper cables and accessories.<br>

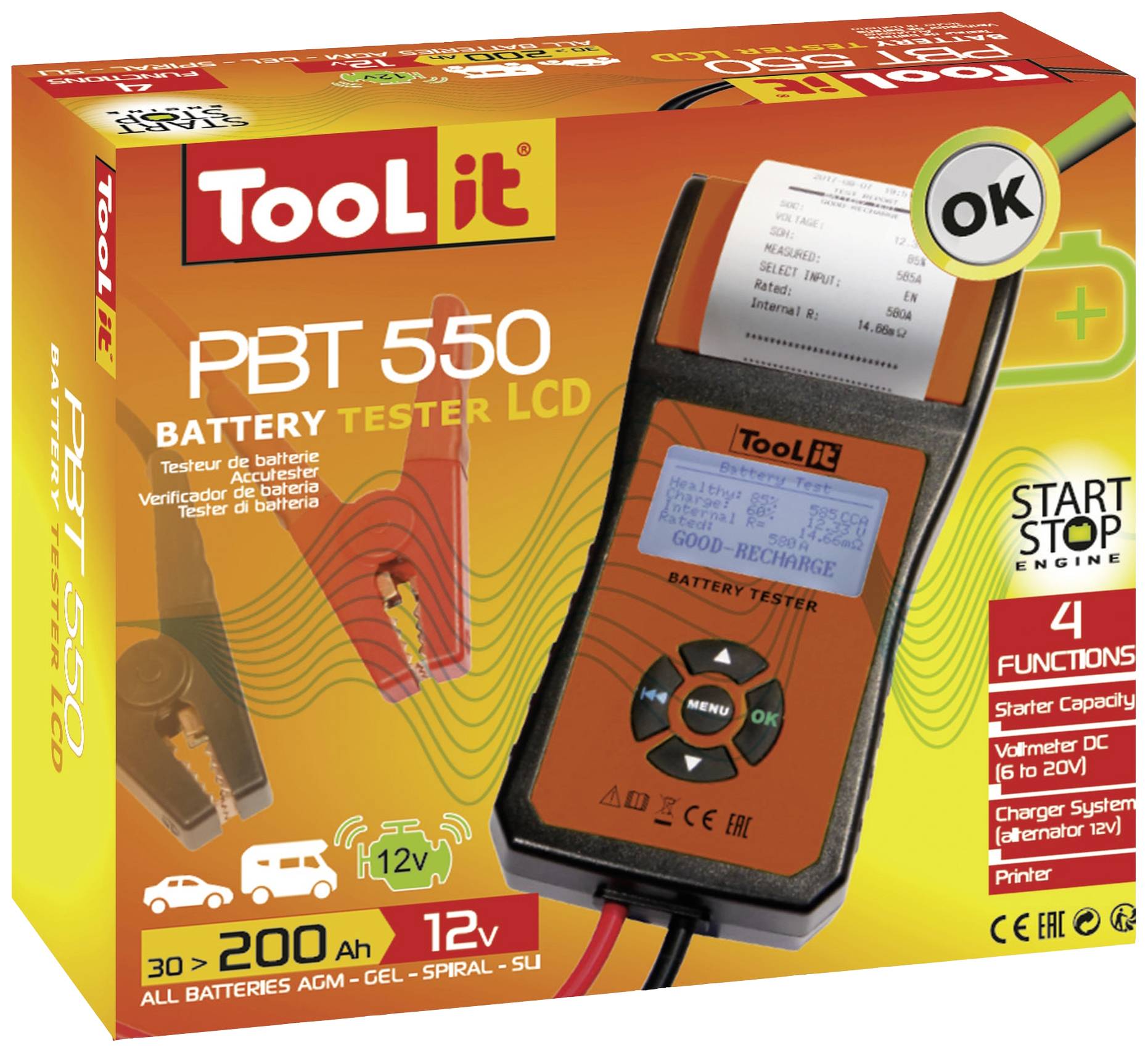

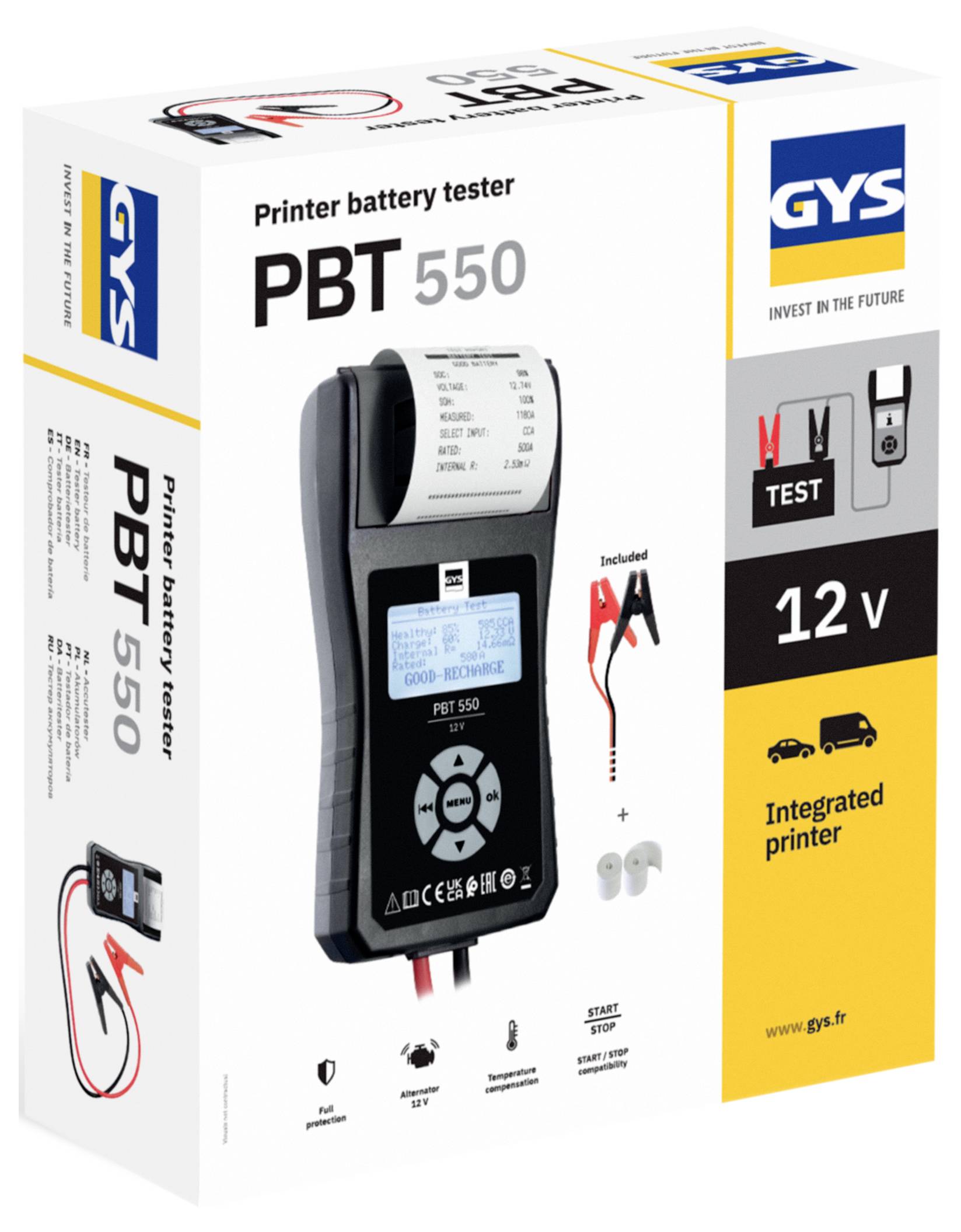

Box for GYS PBT 550 printer battery tester, showing the device, test function, integrated printer, and 12 V compatibility.

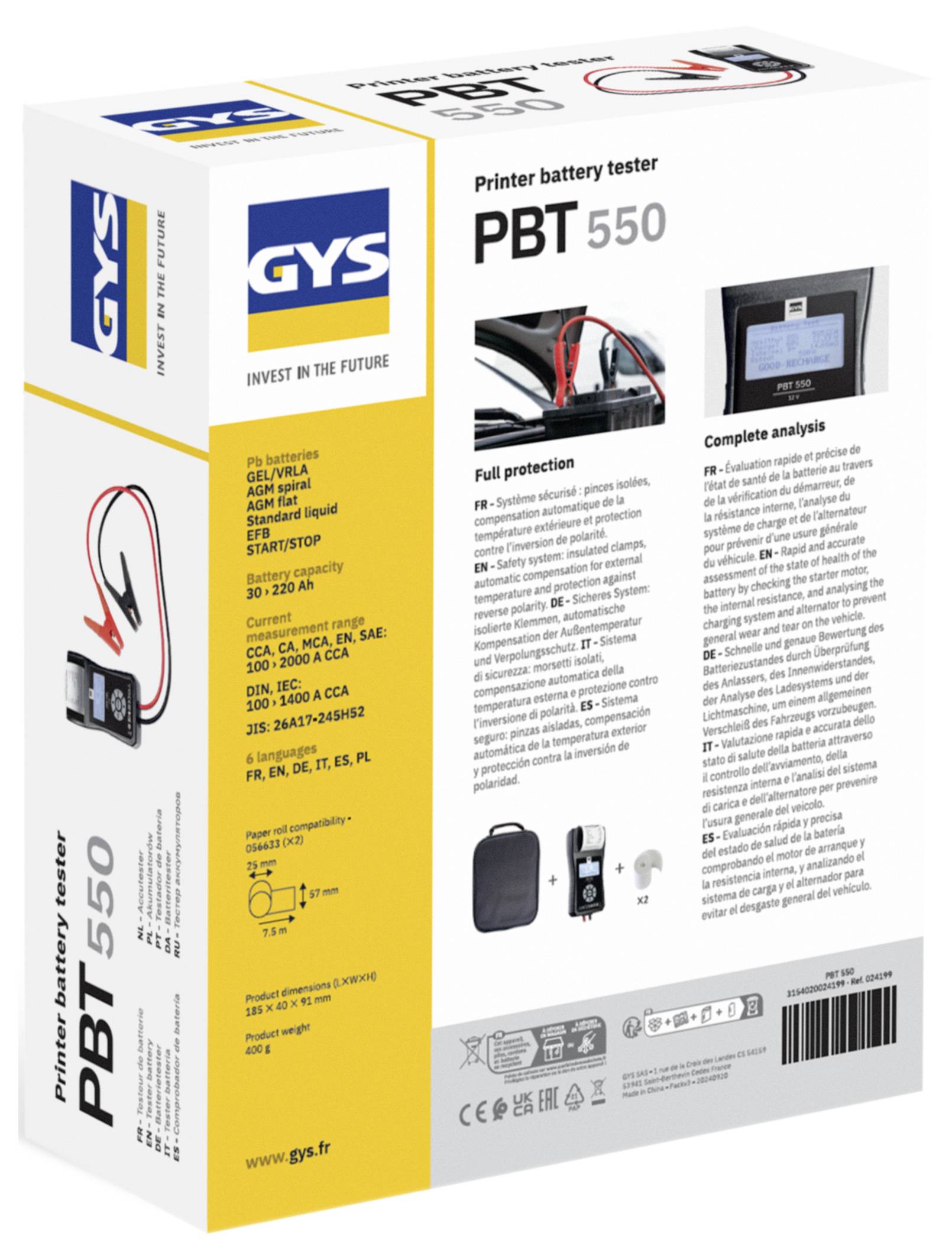

Box of GYS PBT 550 printer battery tester, showing product photo, features, and battery type compatibility on the packaging.

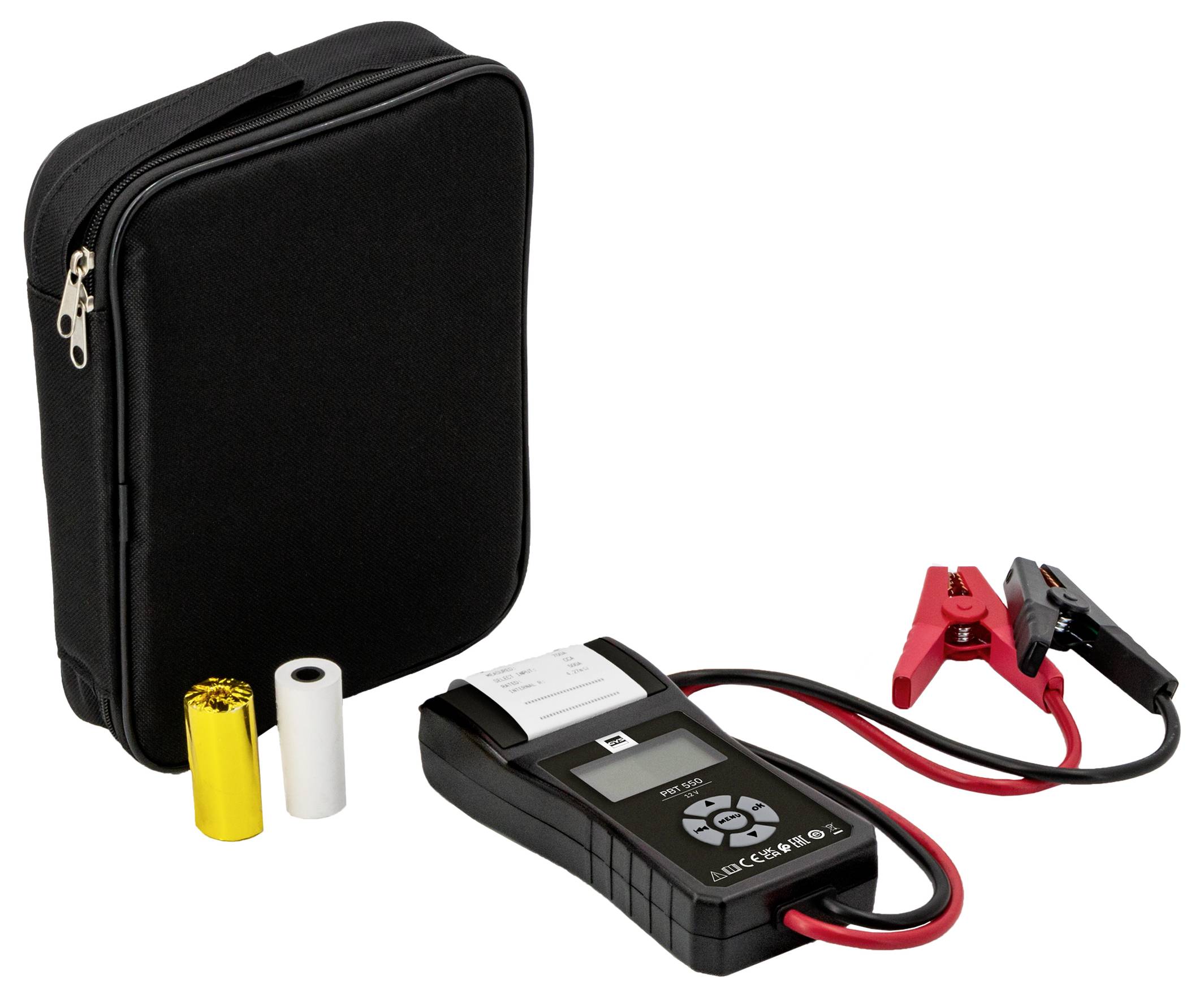

Portable battery tester kit with carrying case, two cells, and red/black test clips attached to a handheld meter.

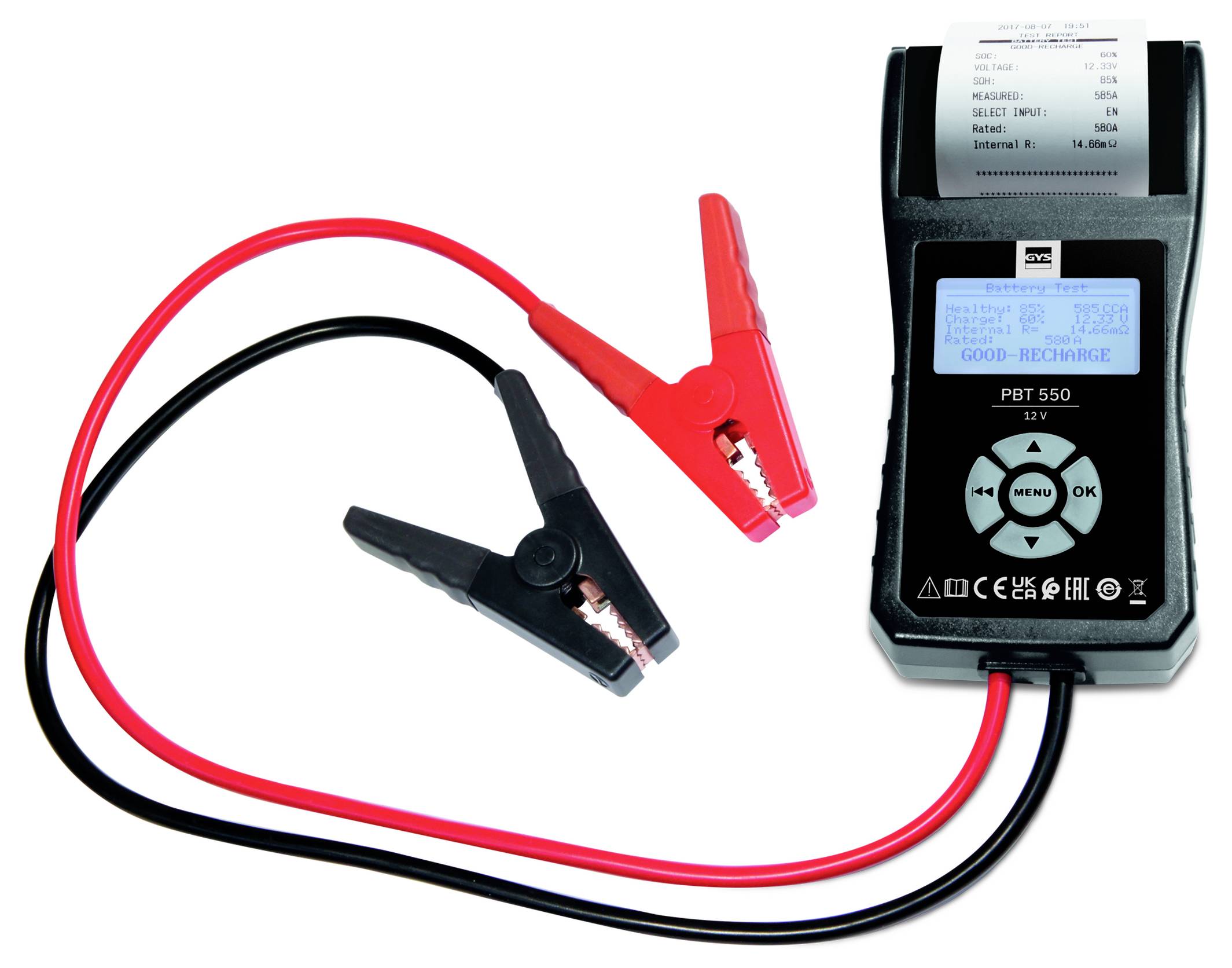

Portable battery tester with a printed receipt and red/black clamp leads attached, showing a digital display and control buttons.

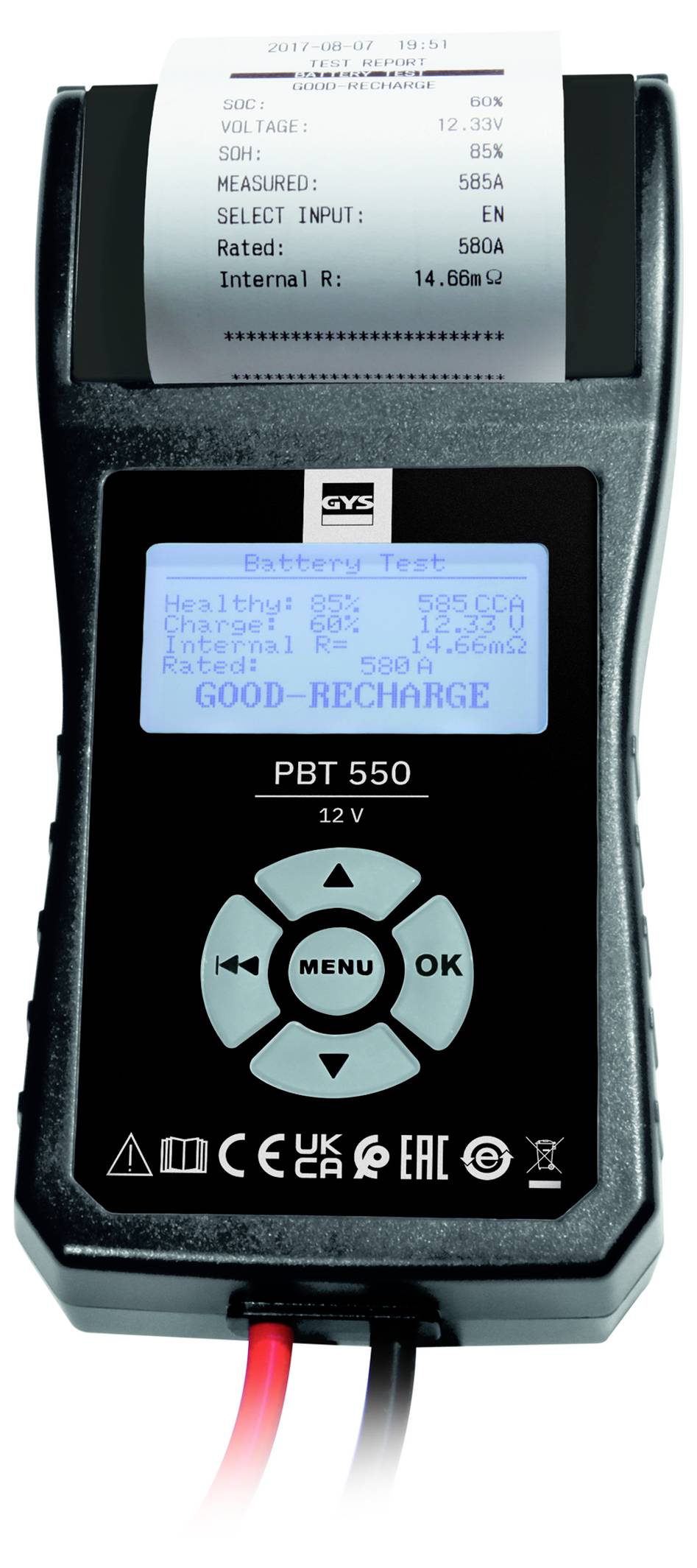

Handheld battery tester with display showing 'GOOD-RECHARGE' and test results, including voltage, health, and internal resistance.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

Report legal concerns

Technical specifications

Cable length 65 cm

Product type: Car battery tester

Battery voltage: 12 V

Recommended battery capacity: 30 - 220 Ah

Suitable for: Lead acid membraneLead-acidLead-acid gelLead-acid silicone

Weight: 550 g

Documents & Downloads

Datasheet

Datasheet 2784264 GYS PBT 550 Car battery tester 12 V

User & Safety Instructions

User & Safety Instructions 2784264 GYS PBT 550 Car battery tester 12 V

Description

Professional tester with integrated printer for fast and accurate results.The dynamic resistance measurement minimizes battery discharge and indicates a false result.

This text is machine translated.

Features

Automatic outdoor temperature compensationBattery 12V: Measures battery voltage (6V to 12V) and battery charge (result in %)Starter 12V: Measures the start voltageAlternator 12V: Measures the output voltage of the alternatorSpecial function for measuring the internal resistance of the batteryIntegrated thermal printer for printing the test resultsLarge, backlit LCD displayPrint the test report with date and timeMultilingual softwareProtected against polarity reversalABS housing (acid-resistant)No batteries required: Works with the current of the vehicle battery

Scope of delivery

PBT 550
Carrying case
2 Paper rolls
User manual.
