Buy H-Tronic 1114730 Switch-on current limiter SCL 3680 IP20

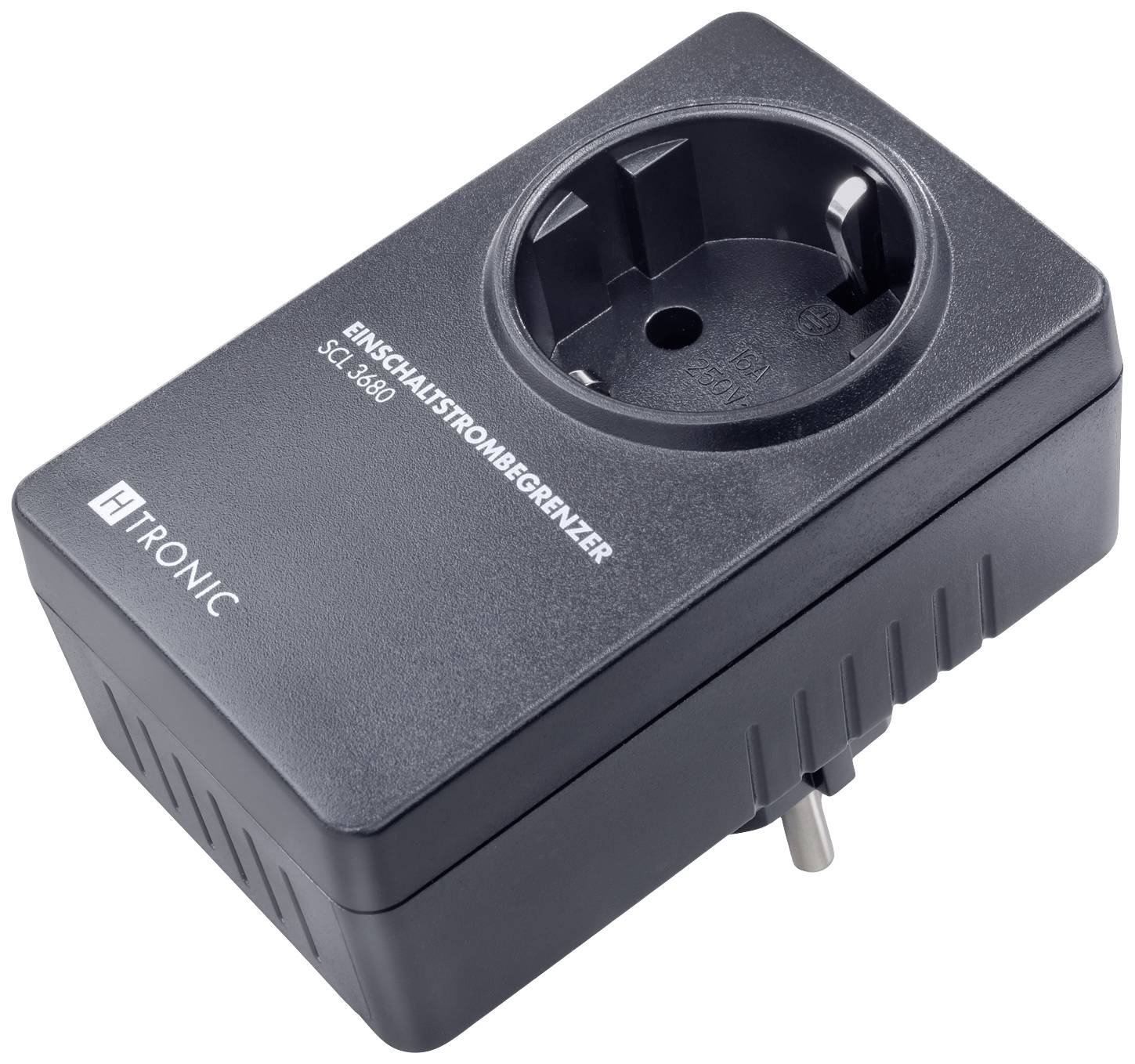

Power adapter with the inscription 'Inrush Current Limiter SC 380', black casing, used to limit the inrush current in devices.

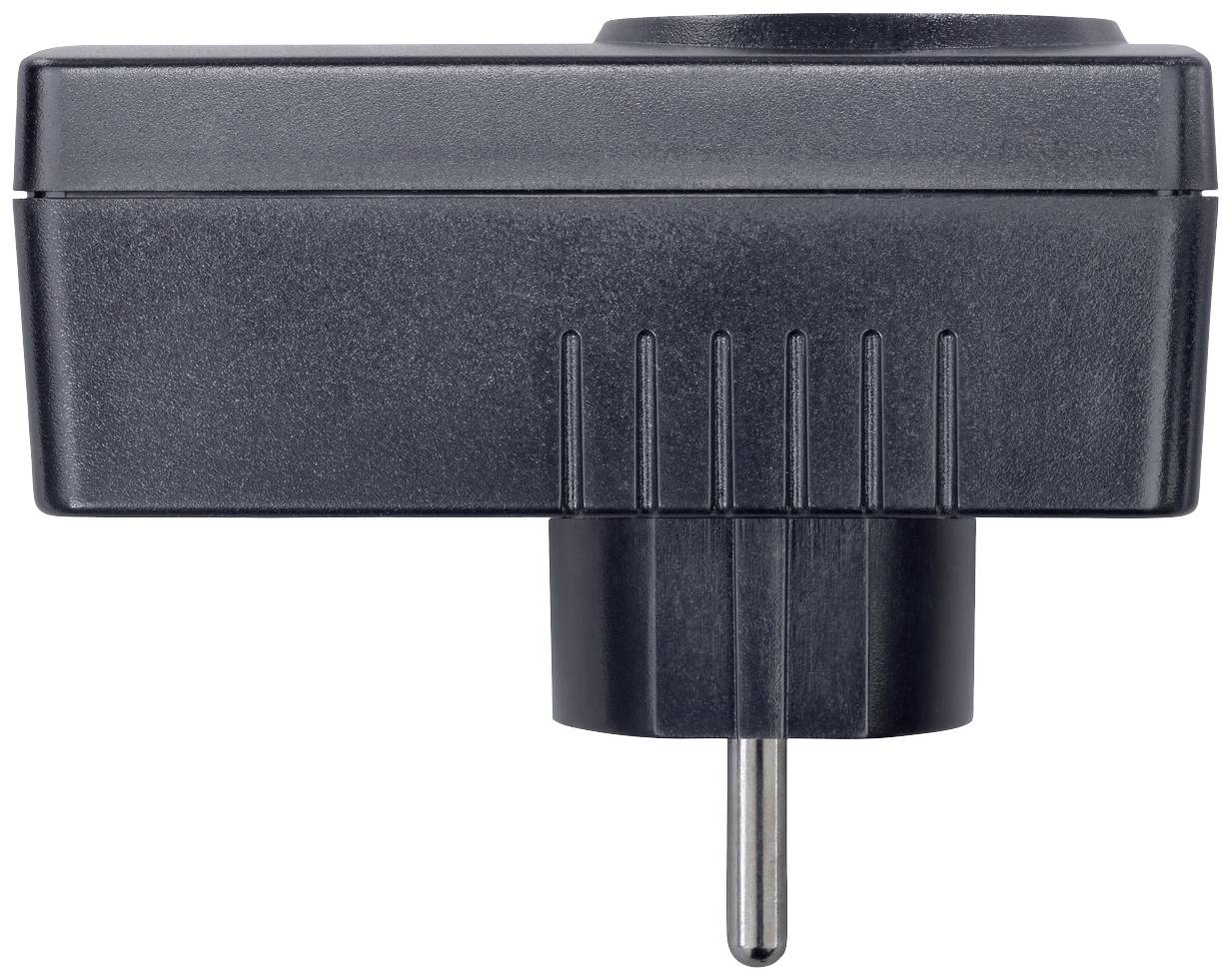

A black electric adapter with a European plug. Perfect for connecting to European power sockets.

'Plug Adapter SCL 3680 Saves Grid and Nerves', shows a socket adapter next to a circuit breaker in close-up.

An angle grinder creates sparks. In the foreground, a package reads: 'SCL 3680 prevents high inrush currents'.

1/5

Datasheet (PDF)

428 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€

Report legal concerns

Highlights & Details

Switch-on current limiter SCL 3680

Max. switching operations per minute: 10 (depending on the electrical consumer)
No function when connecting several electrical consumer
Integrated temperature monitoring protects against overload

Technical specifications

Operating voltage 230 V ~, 50 HzPower consumption (standby): Approx. 0.6 WAmbient temperature: -10 °C to 50 °CDimensions: Specification without plug

Dim: (W x H x D) 59 x 98 x 41 mm

Type A: PG socket

Type B: PG plug

Depth: 41 mm

Height: 98 mm

Width: 59 mm

: IP20

Max. nominal current: 16 A

: 3680 W

Product type: Inrush current limiter

Documents & Downloads

Datasheet

Datasheet 2588901 H-Tronic 1114730 Switch-on current limiter SCL 3680 IP20

User & Safety Instructions

User & Safety Instructions 2588901 H-Tronic 1114730 Switch-on current limiter SCL 3680 IP20

Conformity certificate

Conformity certificate 2588901 H-Tronic 1114730 Switch-on current limiter SCL 3680 IP20

Description

Your powerful angle grinder, a strong compressor or a powerful pump trigger the fuse when switched on? Here's the solution!We are talking about the inrush current, that is, the electrical current that flows immediately after a powerful device is switched on. It is often many times higher than the nominal current and loads the mains and connected consumers equally. This can lead to undesirable effects such as the triggering of fuses and circuit breakers or even overload of the entire system. The switch-on current limiter SCL 3680 solves this problem and reduces the high switch-on currents for a short time, in order to prevent triggering of the fuse.

This text is machine translated.

Scope of delivery

Inrush current limiter SCL3680
Operating instructions German/English.
