Buy H-Tronic 4016138191899 Continuous lighting/tail lights Suitable for: AC and DC 1 pc(s)

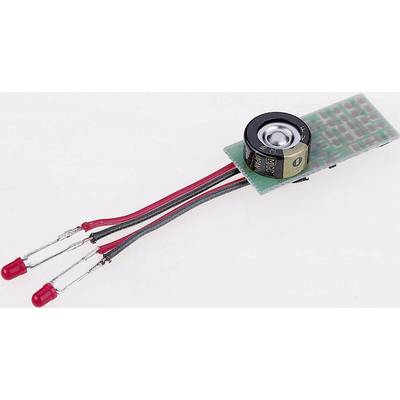

Electronic circuit with two red LEDs, a small round component, and a circuit board.

Small SMD resistors in various values: 100, 120, 180, 220, 330, 15R and 27R.

A train emerges from a tunnel without a driver. The train has simple round eyes and a smiling face.

'Electronic components in various shapes, sizes and with dimensional specifications; shows connections and housing types.'

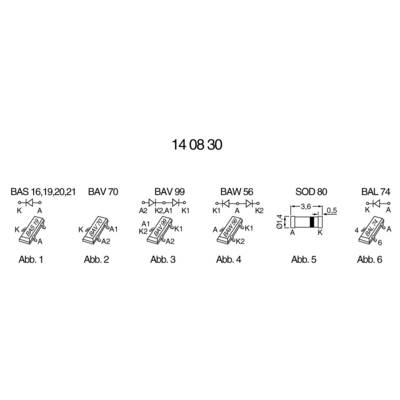

Circuit diagram with labels and illustrations for electronic components: BAS, BAV, BAW, SOD, BAL. Respective symbol diagrams underneath.

'Mini-MELF (SOD80)' Diode: Diagram with dimensions, diameter 1.4 mm, length 3.6 mm, PN connections A and K, package type illustrated.

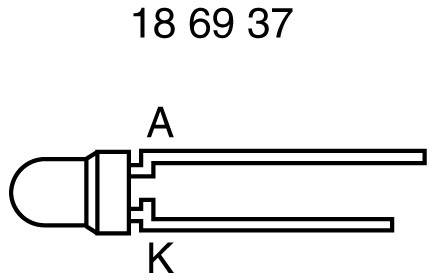

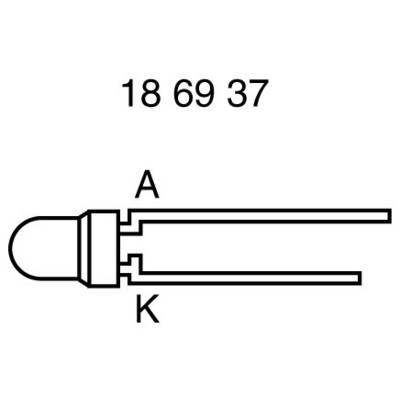

Diagram of a light-emitting diode with two terminals labelled 'A' for anode and 'K' for cathode. Above is the number sequence '18 69 37'.

Three drawings of trains in a tunnel: top left in black and white, top right with shading, bottom in solid black.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Constant/tail end lighting for DC and AC systems

Technical specifications

Size: N
TT
H0

Product type: Continuous lighting/tail lights

Type: Assembly kit

Suitable for: AC and DC

Max. current consumption: 1 mA

Operating voltage

Length: 32 mm

Width: 14 mm

Height: 10 mm

Dim: (L x W x H) 32 x 14 x 10 mm

Age category: 15 years and over

Type: Kit

Manufacturer part #: 4016138191899

Design type: Constant/tail end lighting

Current consumption: - input/output voltage 1 mA

Operating voltage: Max. 16 V/AC or 20 V/DC

Documents & Downloads

Datasheet

Datasheet 191892 H-Tronic 4016138191899 Continuous lighting/tail lights Suitable for: AC and DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 191892 H-Tronic 4016138191899 Continuous lighting/tail lights Suitable for: AC and DC 1 pc(s)

Information

Information 191892 H-Tronic 4016138191899 Continuous lighting/tail lights Suitable for: AC and DC 1 pc(s)

Description

Who does not know the disturbing flicker of the tail lights when driving over the section points, switch transitions or termination while stationary? Moreover, the brightness is dependent on the driving voltage with conventional track lighting New long term storage bridges contact-conditioned flickering and also ensures for the safe stop as the lighting further shines for a certain time with full brightness. The flash lighting during the switching of direction of travel is likewise suppressed as usually with Märklin. The Control Electronics is designed in SMD technology in such a way, so that the installation in track N, TT and HO wagons does not creates problems.
