H1 Solutions 1045 Safety light Ceiling surface-mount
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

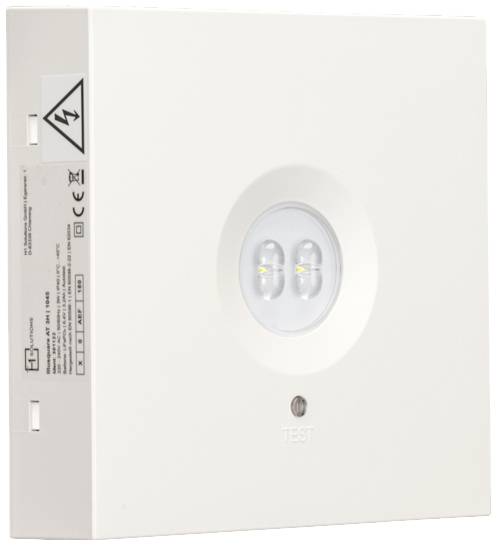

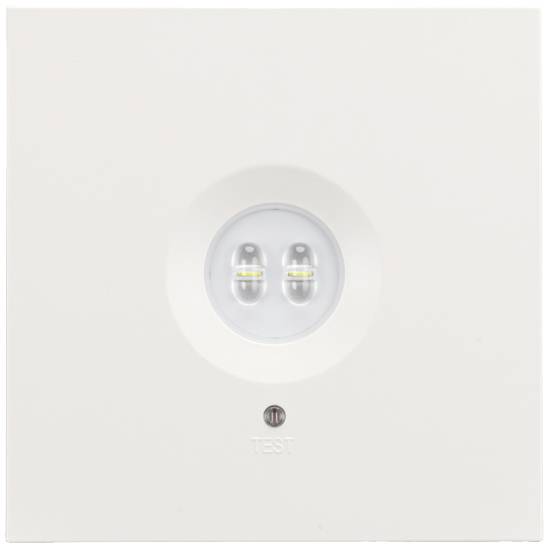

Safety light H1 Solutions Illusquare AT 3H 1045 (Ceiling surface-mount)
- Quadratic safety lamp
- Mounting type: Ceiling
- Colour: white
Technical specifications
- Input voltage/frequency 220 – 240 V/AC/50/60 Hz
- Autonomy time 3 hr
- LiFePO4 battery
- Max. Output AC 7.36 VA
- Max. Capacity DC 4.9 W
- Nominal bulb power 4 W.
- Ambient temperature: 0 °C ... 40 TO +40 C
- Polycarbonate housing material
- Impact strength: IK08
- Battery voltage 6.4 V
- Battery capacity 3.2 Ah
- Housing color (RAL): 9016
- Max. Cable cross-section: 1.5 mm²
- Luminous flux Mains operation 510 lm
- Emergency light output: 510 lm
- Light color 5,000 K lamp
- Expected LED life (h): 50,000
- Colour rendering index (Ra): >70
- Dim
(W x H x D) 150 x 150 x 38.5 mm
- Product type
Safety light
- Main battery supply
No
- Backlit
Yes
- Operating voltage
230 V AC
- Weight
0.55 kg
4 W
- Bulb type
LED (monochrome)
- Material
Polycarbonate (PC)
- Mounting type
Ceiling surface-mount
- Width
150 mm
- Height
150 mm
- Depth
38.5 mm
IK08
IP40
- Protection class
II
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3220156 H1 Solutions 1045 Safety light Ceiling surface-mount
User & Safety Instructions
User & Safety Instructions 3220156 H1 Solutions 1045 Safety light Ceiling surface-mount
Description
Illusquare AT 3H Safety Light - The quadrature of the beacon light
Square safety light in a minimalist design. Connection and installation-friendly plastic casing in traffic white, RAL 9016.
Illuminant (LED) in the evening sun imitated, concentration-promoting light color 5,000 K. Lamp light current 510 Lumen for particularly wide mounting distances of up to 30 m at 2.5 m installation height. Including easily replaceable high-tech lenses for a choice of surface or escape route lighting. Optimised heat management thanks to special heat conductive plate on the bulb.
Complete with all electrical operating and lighting elements for quick and easy installation.
The lamp regularly and automatically checks for function by the integrated autotest component.
Robust, long-lasting and rechargeable LiFePO4 battery for use even at high ambient temperatures. Discharge at almost constant voltage and low self-discharge.
This text is machine translated.
Features
- Lamp type: Single battery
- Mounting type: Ceiling
- Test equipment: Autotest
- Operating mode: Standby mode.
Scope of delivery
- With 6 bits. Surface/path lens (symmetric/asymmetric).
Hints
Safety relevant component - Only by skilled workers.
