H1 Solutions 1053 Safety light Ceiling recess-mount
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

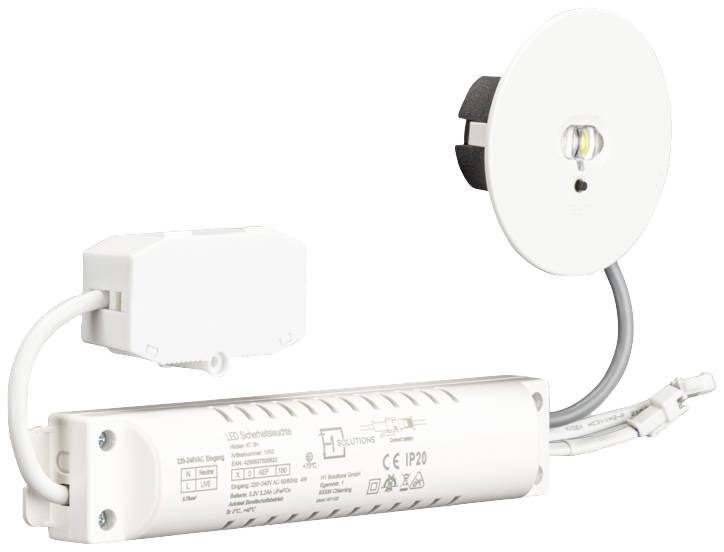

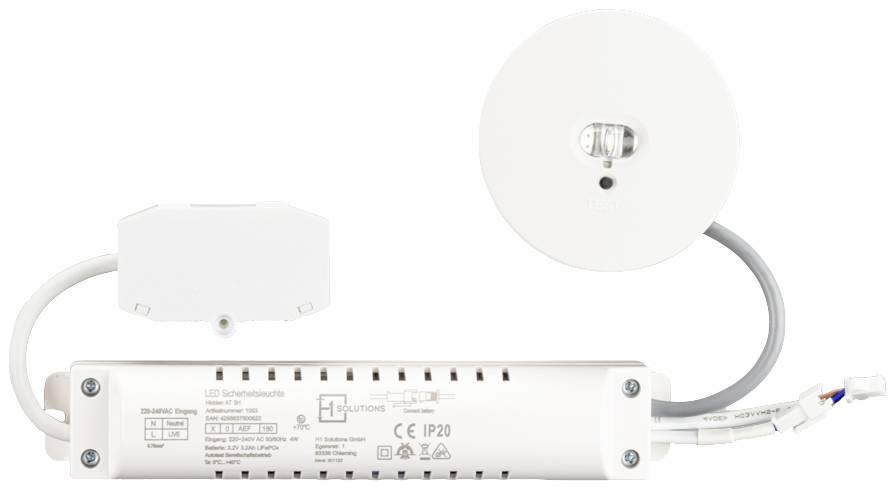

Safety light H1 Solutions Hidden AT 3H 1053 (Ceiling recess-mount)
- Small and inconspicuous installation housing
- Ceiling installation mounting
- Colour: white
Technical specifications
- Input voltage/frequency 220 – 240 V/AC/50/60 Hz
- Autonomy time 3 hr
- LiFePO4 battery
- Max. Output AC 5.5 VA
- Max. Capacity DC 3.45 W
- Nominal bulb power 3 W.
- Ambient temperature: 0 °C ... +40 °C).
- Housing material: Polycarbonate | aluminum alloy
- Impact strength: IK04
- Battery voltage 3.2 V,
- Battery capacity 3.2 Ah
- Housing color (RAL): 9016
- Max. Cable cross-section: 2.5 mm²
- Luminous flux Mains operation 280 lm
- Emergency light output: 280 lm
- Light color 5,000 K lamp
- Expected LED life (h): 50,000
- Colour rendering index (Ra): >70
- Dim
(Ø) 80 mm
- Product type
Safety light
- Main battery supply
No
- Backlit
Yes
- Operating voltage
230 V AC
- Recess depth
34 mm
- Weight
0.35 kg
3 W
- Bulb type
LED (monochrome)
- Material
Aluminium alloy
- Mounting type
Ceiling recess-mount
- (Ø)
80 mm
IK04
IP20
- Protection class
II
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3220158 H1 Solutions 1053 Safety light Ceiling recess-mount
User & Safety Instructions
User & Safety Instructions 3220158 H1 Solutions 1053 Safety light Ceiling recess-mount
Description
Safety light Hidden AT 3H - because they don't know that it is there
Normally almost invisible, 100% on the spot when needed - hide your safety lighting with Hidden! The small and inconspicuous mounting housing allows the lamp to be integrated effortlessly in your ceiling. The illuminant (LED) is specified, in the evening sun reflecting, the concentration promoting light color 5,000 K. Including easily replaceable high-tech lenses for a choice of surface or escape route lighting. Through an optimized heat management the lamp will remain surprisingly "cool" even at high loads.
Complete with all electrical operating and lighting elements for quick and easy installation.
The lamp regularly and automatically checks for function by the integrated autotest component.
Robust, long-lasting and rechargeable LiFePO4 battery for use even at high ambient temperatures. Discharge at almost constant voltage and low self-discharge.
This text is machine translated.
Features
- Lamp type: Single battery
- Mounting type: Ceiling mounting
- Test equipment: Autotest
- Operating mode: Standby mode.
Scope of delivery

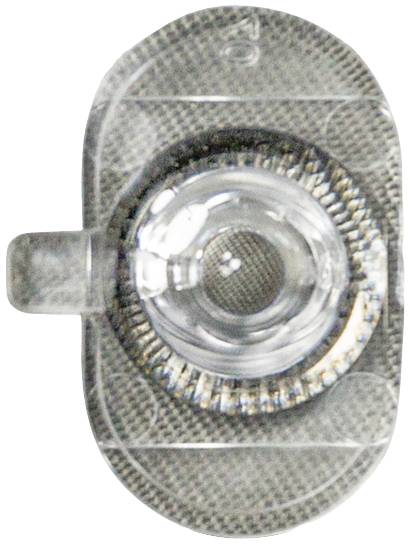

- With 6 bits. Surface/path lens (symmetric/asymmetric).
Hints
Safety relevant component - Only by skilled workers.
