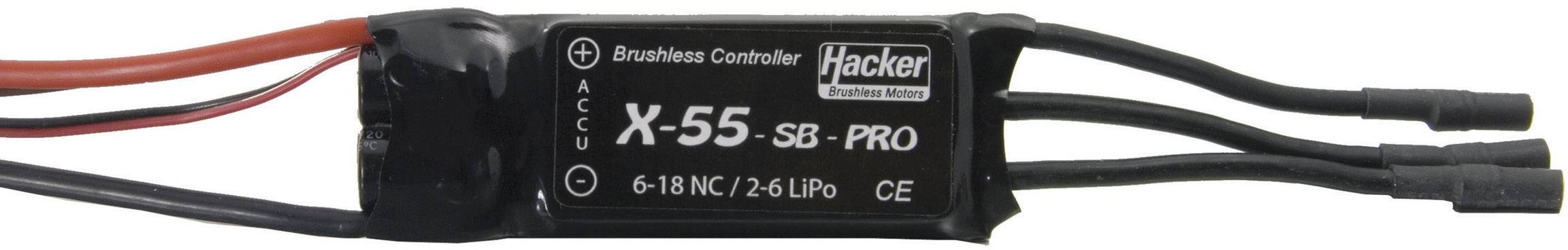

Hacker X-55-SB-Pro BEC Model aircraft brushless motor controller
EAN:
Part number:
Item no:
Highlights & Details
X-Pro brushless controller
- Programmable via USB
- "Real speed regulation" for helicopters.
Technical specifications
- Type
X-55-SB-Pro
- Permanent current
55 A
- Dim
(L x W x H) 75 x 28 x 10 mm
- Weight
45 g
- BEC data
2 - 6 servos
- No. of LiPo cells
2 - 6
- No. of NiCd/NiMH batteries
8 - 18
- Connector system
JR socket
- Plug-in battery
- (N/A)
- Motor connector system
- (N/A)
- Height
10 mm
- Length
75 mm
- Width
28 mm
- Permanent current
55 A
- Clock speed
8 kHz / 16 kHz
- Product type
Model aircraft brushless motor controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 208788 Hacker X-55-SB-Pro BEC Model aircraft brushless motor controller
Conformity certificate
Conformity certificate 208788 Hacker X-55-SB-Pro BEC Model aircraft brushless motor controller
Description
The X- Pro speed controllers are sensorless speed controllers specially designed and developed for the A-miniature Hacker brushless motor series. These controllers are also well suited to other brushless motors thanks to the different operating modes. Our special software (optional) for calibrating numerous controller setups is supplied with a new USB interface cable. All setup settings for the speed controller can be read and stored on the computer.
Features
- Adjustable battery type
- Adjustable cut-off voltage of the cut-off function
- Adjustable timing
- Adjustable pulse frequency
- Can be programmed via the USB interface or alternatively via the throttle stick
- "Real speed regulation" for helicopters.
