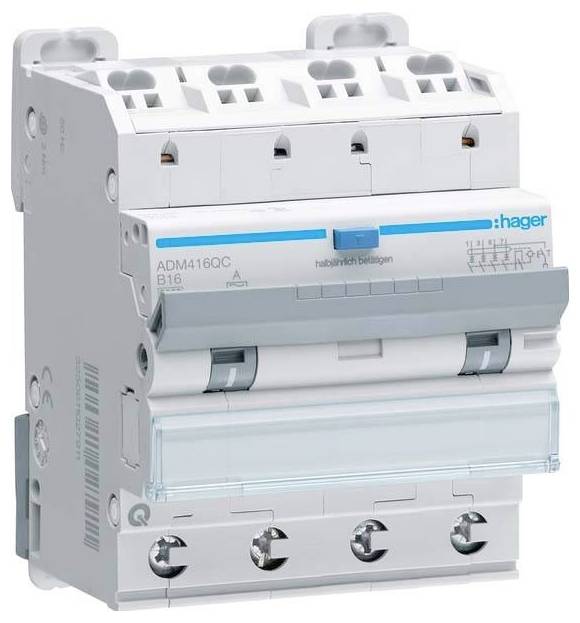

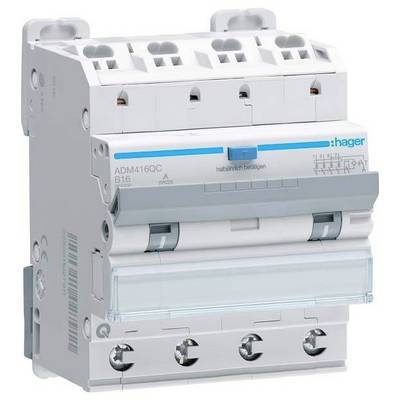

Hager ADM416QC RCBO 3-phase 0.03 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
4
Release characteristics
B
Differential current rating
0.03 A
Switch-off capacity
6 kA
Technical specifications
- Product type
RCBO
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.03 A
- Factory colour
Multicolour
- Dim
(W x H x D) 71 x 84 x 70 mm
- Content
1 pc(s)
- Model
3-phase
- Switch-off capacity
6 kA
- Nominal voltage
230 V
400 V
- Width
71 mm
- Height
84 mm
- Depth
70 mm
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893591 Hager ADM416QC RCBO 3-phase 0.03 A 230 V, 400 V
Description
Residual current circuit breaker 4P 6kA B-16A 30mA type A QC/QB. Residual current circuit breaker in accordance with DIN EN 61009-1 (VDE 0664-20) with overload protection of the neutral conductor through 4-pole circuit breaker for 400 V three-phase circuits and a fault current protection circuit in compact casing. QuickConnect spring-loaded terminal according to DIN EN 60898-1 (VDE 0641-11), at the outlet and at the access, blue test button and fault-current display. Simple separate removal from the multiple phase busbar system through top and bottom DIN rail sliders. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
This text is machine translated.
This text is machine translated.
