Hager ADS906D RCBO 2-pin 6 A 0.03 A 240 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
6 A
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Switch-off capacity
6 kA
- Nominal voltage
240 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3199483 Hager ADS906D RCBO 2-pin 6 A 0.03 A 240 V
User & Safety Instructions
User & Safety Instructions 3199483 Hager ADS906D RCBO 2-pin 6 A 0.03 A 240 V
Description

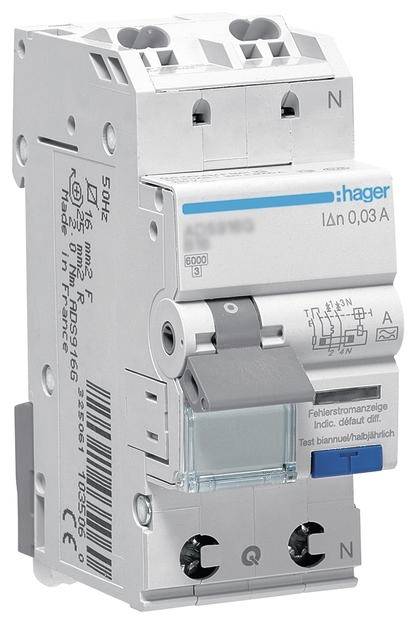

Residual current circuit breaker 1P+N 6kA B-6A 30mA type A QuickConnect. Residual current circuit breaker in accordance with DIN EN 61009-1 (VDE 0664-20) with QuickConnect terminal, at outlet up to 20 A and at access up to 63 A, blue test button and fault current indicator. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
