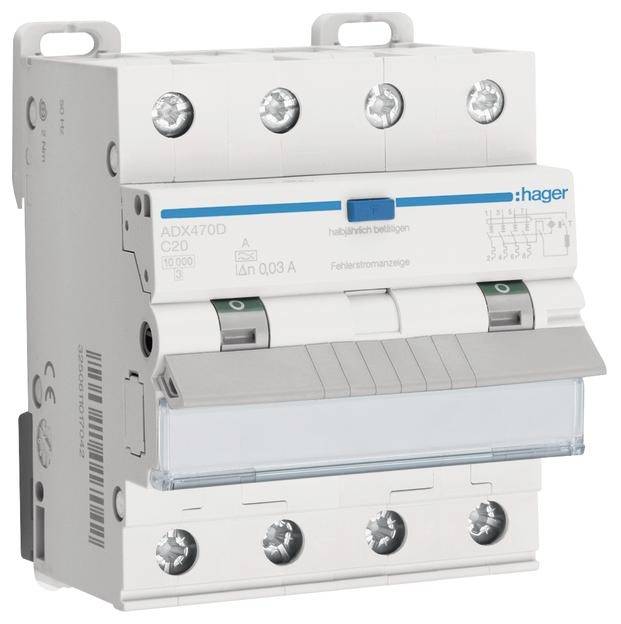

Hager ADX470D RCBO 4-pin 20 A 0.03 A 400 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
4
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
20 A
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Number of pins
4
- Release characteristics
C
- Differential current rating
0.03 A
- Dim
(W x H x D) 79.0000 x 80.0000 x 100.0000 mm
- Content
1 pc(s)
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Switch-off capacity
10 kA
- Nominal voltage
400 V
- Width
79.0000 mm
- Height
80.0000 mm
- Depth
100.0000 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3199950 Hager ADX470D RCBO 4-pin 20 A 0.03 A 400 V
User & Safety Instructions
User & Safety Instructions 3199950 Hager ADX470D RCBO 4-pin 20 A 0.03 A 400 V
Description
Residual current circuit breaker 4P 10kA C-20A 30mA A type A. Residual current circuit breaker in accordance with DIN EN 61009-1 (VDE 0664-20) with 4-pole circuit breaker for 400 V three-phase circuits and a residual current circuit breaker in a compact case, blue test button and fault current indicator. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
