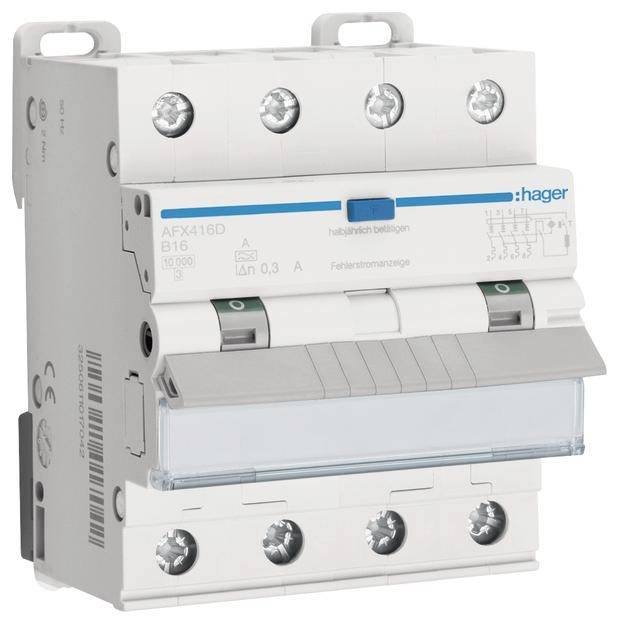

Hager AFX416D RCBO 4-pin 16 A 0.3 A 400 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
4
Release characteristics
B
Differential current rating
0.3 A
Nominal current - rounded value
16 A
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.3 A
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
10 kA
- Nominal voltage
400 V
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3199962 Hager AFX416D RCBO 4-pin 16 A 0.3 A 400 V
User & Safety Instructions
User & Safety Instructions 3199962 Hager AFX416D RCBO 4-pin 16 A 0.3 A 400 V
Description
Residual current circuit breaker 4P 10kA B-16A 300mA type A. Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20) with 4-pole circuit breaker for 400 V three-phase circuits and a fault current circuit breaker in compact casing, blue test button and fault current display. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
