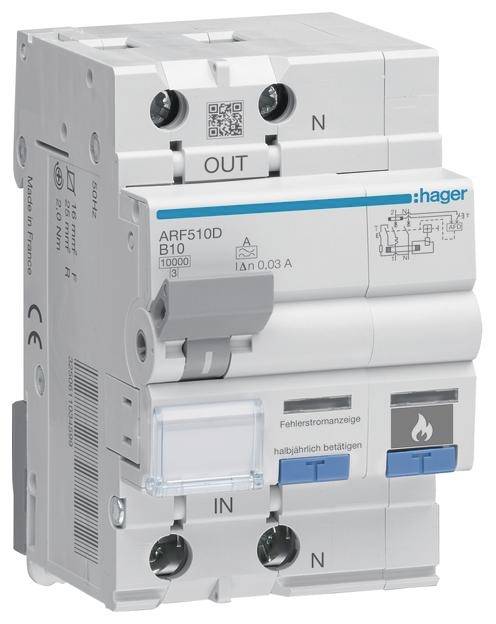

Hager ARF510D RCBO 2-pin 10 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
10 A
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- Content
1 pc(s)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Switch-off capacity
10 kA
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3200641 Hager ARF510D RCBO 2-pin 10 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 3200641 Hager ARF510D RCBO 2-pin 10 A 0.03 A 230 V
Description
AFDD error arc protective device with FI-LS 1P+N 10kA B-10A 30mA type A 3M. AFDD according to DIN EN 62606 (VDE 0665-10), combined with FI/LS switch 1P+N according to DIN EN 61009-1 (VDE 0664-20), DIN EN 61009-2-1 (VDE 0664-21), with differential current monitoring type A (30 mA), with screwing technology, blue test buttons for the AFD unit with error light display and fault current display. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
