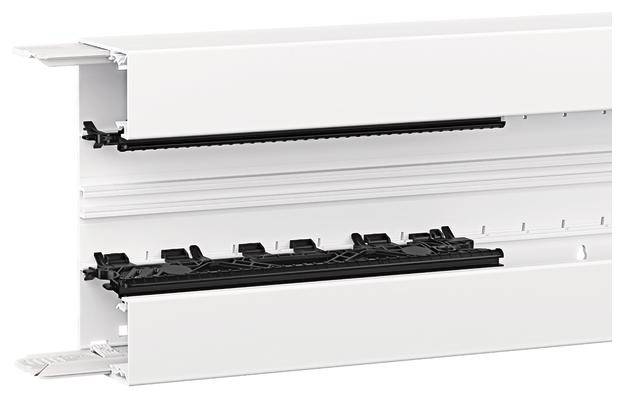

Hager BRN6517019016 Trunking Bottom part (L x W) 2000 mm x 170 mm 2 m White
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Factory colour
White
- Dim

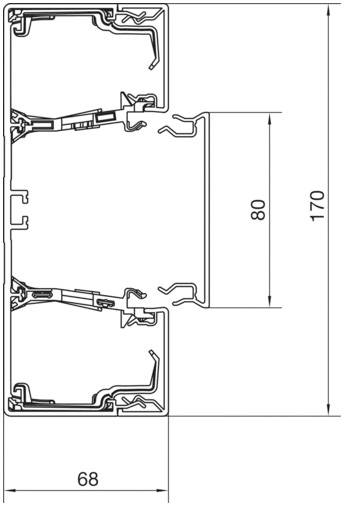

(L x W) 2000 mm x 170 mm
- Length
2000 mm
- Width
170 mm
- Depth
68 mm
White
170
FALSE
68 mm
9016
Untreated
Polyvinyl chloride (PVC)
2000 m
Plastic
Inner lying
3
1
TRUE
TRUE
TRUE
9130 mm²
80 mm
45
45
TRUE
TRUE
Continuous C-profile
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815755 Hager BRN6517019016 Trunking Bottom part (L x W) 2000 mm x 170 mm 2 m White
Description
Dado trunking base profile mounting BRN 68x170mm made from PVC in black. Channel lower part for the electrical installation channel system Dado channel made of plastic according to DIN EN 50085-1 as device mounting channel with upper section 80 mm, removable side upper parts for easy and quick wiring and re-allocation. System carrier for dividing the basic profile into three separate areas: Two separate cable-guiding chambers as well as one equipment installation area. With mounting holes (universal drill tolerance compensation) for direct wall mounting and additional rectangular holes for tool-free attachment of channel on consoles by means of clip technology. With front locking, tool-free equipment installation for the attachment of devices and equipment installation sockets with quick mounting Additional C-profile as installation option. Couplers available for simple and custom-fit duct mounting, dividers and cable retention clips as accessories. Note: Sound and fire protection measures must be carried out in a professional manner.
