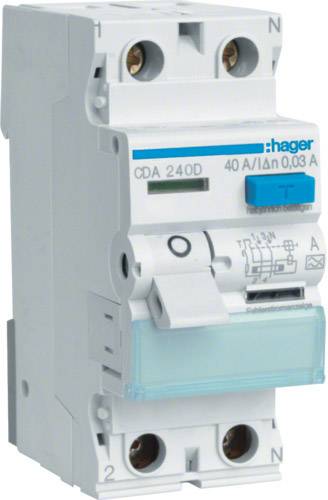

Hager CDA240D CDA240D RCCB 1-phase 2-pin 40 A 0.03 A
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Nominal current
40 A
Datasheet (PDF)
Technical specifications
- Isolation voltage: 500 V
- Operating temperature: -25 to + 40 °C.
- Product type
RCCB
- Number of pins
2
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(W x H x D) 35 x 83 x 70 mm
- Model
1-phase
- Switch-off capacity
6 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Width
35 mm
- Height
83 mm
- Depth
70 mm
- Nominal voltage (details)
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1845537 Hager CDA240D CDA240D RCCB 1-phase 2-pin 40 A 0.03 A
User & Safety Instructions
User & Safety Instructions 1845537 Hager CDA240D CDA240D RCCB 1-phase 2-pin 40 A 0.03 A
Description
Residual current circuit breaker 2-pole 6kA 40A 30mA Type A
Residual current circuit breaker (RCD) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11,
Contact protection IP2x according to DIN VDE 0106 Part 100. Suitable for subsequent installation of
Additional equipment (Mounting without tools). Connection terminals with Draht-Einschiebe-protection, Bi-
Connect terminals at the bottom, external blue test button. All products with VDE.
Labelling option directly on the device.
This text is machine translated.
Residual current circuit breaker (RCD) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11,
Contact protection IP2x according to DIN VDE 0106 Part 100. Suitable for subsequent installation of
Additional equipment (Mounting without tools). Connection terminals with Draht-Einschiebe-protection, Bi-
Connect terminals at the bottom, external blue test button. All products with VDE.
Labelling option directly on the device.
This text is machine translated.
