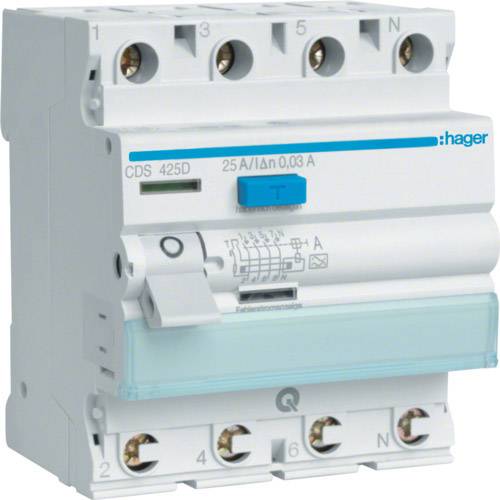

Hager CDA425D CDA425D RCCB 4-pin 25 A 0.03 A
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Nominal current
25 A
Datasheet (PDF)
Technical specifications
- Isolation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Product type
RCCB
- Number of pins
4
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(W x H x D) 70 x 83 x 70 mm
- Switch-off capacity
6000 A
- Factory colour
Multicolour
- Content
1 pc(s)
- Width
70 mm
- Height
83 mm
- Depth
70 mm
- Nominal voltage (details)
230/400 V
- Operating voltage
230/400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1845670 Hager CDA425D CDA425D RCCB 4-pin 25 A 0.03 A
User & Safety Instructions
User & Safety Instructions 1845670 Hager CDA425D CDA425D RCCB 4-pin 25 A 0.03 A
Description
Residual current circuit breaker 4-pole 6kA 25A 30mA Type A
Residual current circuit breaker (RCD) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11,
Contact protection IP2x according to DIN VDE 0106 Part 100. Suitable for subsequent installation of
Additional equipment (Mounting without tools). Connection terminals with Draht-Einschiebe-protection, Bi-
Connect terminals at the bottom, external blue test button. All products with VDE.
Labelling option directly on the device.
This text is machine translated.
Residual current circuit breaker (RCD) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11,
Contact protection IP2x according to DIN VDE 0106 Part 100. Suitable for subsequent installation of
Additional equipment (Mounting without tools). Connection terminals with Draht-Einschiebe-protection, Bi-
Connect terminals at the bottom, external blue test button. All products with VDE.
Labelling option directly on the device.
This text is machine translated.
