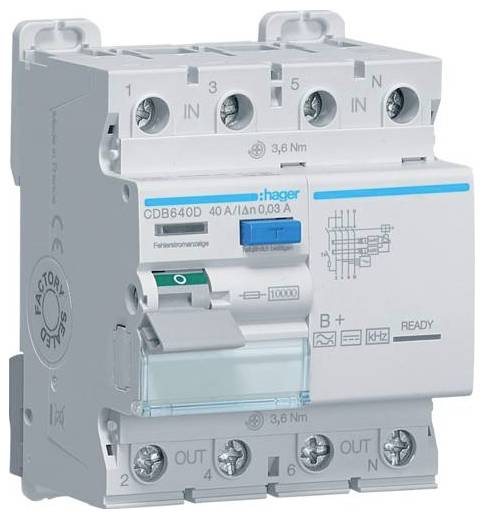

Hager CDB640D CDB640D RCCB A 40 A 0.03 A
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Width
50 mm
- Height
100 mm
- Length
150 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2583985 Hager CDB640D CDB640D RCCB A 40 A 0.03 A
Description
Ground fault circuit breaker 4-pin 10kA 40A 30mA type B+. All-current sensitive residual current circuit breaker (FI, RCCB) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11), DIN EN 61543 (VDE 0664-30) and DIN EN 62423 (VDE 0664-40). Short-time delayed FI for protection against smooth DC error and AC error currents in the frequency range up to 100 kHz. Tripping within this frequency range up to 20kHz takes place below 420 mA. For compliance with the requirements of the installation standards DIN VDE 0100-410 and DIN VDE 0100-530. Touch protection IP2x according to DIN VDE 0106 part 100. Suitable for subsequent attachment of additional devices (mounting without tools). Connection terminals with bi-connect terminals at the bottom, external blue test button, type Bplus. Power indicator, top and bottom rail slide for easy installation. All products with VDE mark. Labeling possibility directly at the device.
