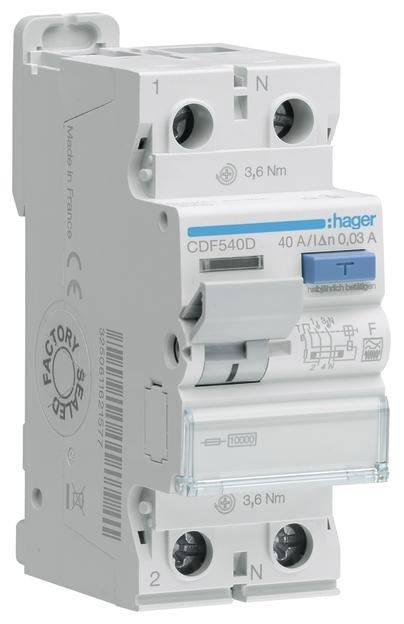

Hager CDF540D CDF540D RCCB F 2-pin 40 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
F
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
F
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Switch-off capacity
10 kA
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
50 mm
- Height
100 mm
- Length
150 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3200225 Hager CDF540D CDF540D RCCB F 2-pin 40 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 3200225 Hager CDF540D CDF540D RCCB F 2-pin 40 A 0.03 A 230 V
Description
Residual current circuit breaker 2-pin 10kA 40A 30mA type F. residual current circuit breaker according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with bi-connect terminals at the bottom, external blue test button and fault current indicator. Suitable for add-on installation of additional devices. Connection terminals with wire slide-in protection, labeling possibility directly on the device.
