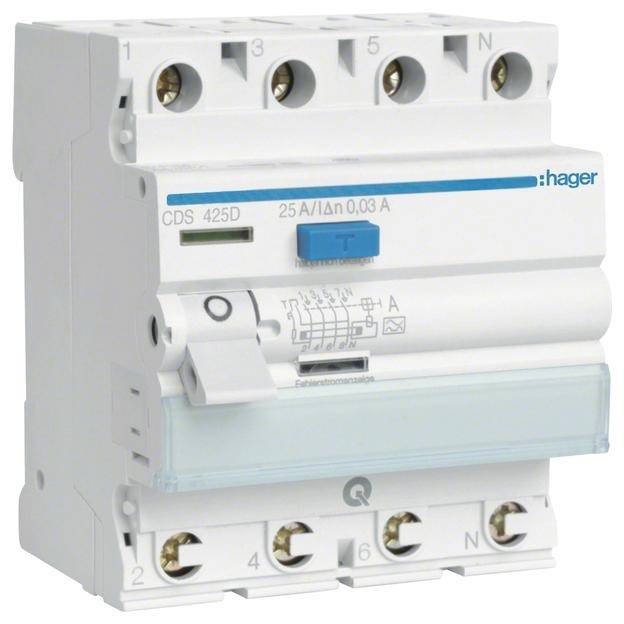

Hager CDS425D CDS425D RCCB A 4-pin 25 A 0.03 A 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Switch-off capacity
6 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198858 Hager CDS425D CDS425D RCCB A 4-pin 25 A 0.03 A 400 V
User & Safety Instructions
User & Safety Instructions 3198858 Hager CDS425D CDS425D RCCB A 4-pin 25 A 0.03 A 400 V
Description
Residual current circuit breaker 4-pin 6kA 25A 30mA type A QuickConnect. Residual current circuit breaker in accordance with DIN EN 61008-1 (VDE 0664-10) and DIN EN 61008-2-1 (VDE 0664-11), QuickConnect terminal in accordance with DIN EN 60898-1 (VDE 0641-11) on access up to 63 A, blue test button and fault current indicator. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
