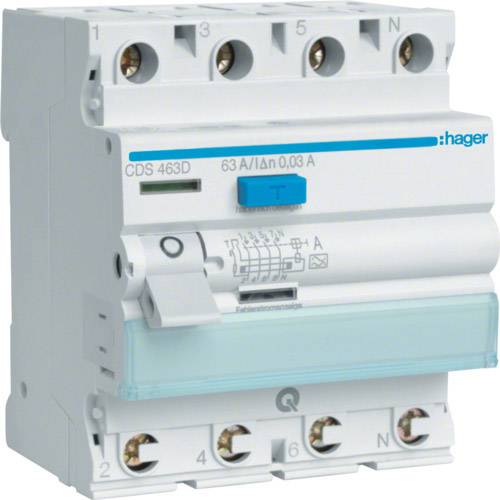

Hager CDS463D CDS463D RCCB A 4-pin 0.03 A
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Dim
(W x H x D) 70 x 83 x 70 mm
Datasheet (PDF)
Technical specifications
- Isolation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Dim
(W x H x D) 70 x 83 x 70 mm
- Switch-off capacity
6 kA
- Factory colour
Grey
- Content
1 pc(s)
- Width
70 mm
- Height
83 mm
- Depth
70 mm
- Nominal voltage (details)
230/400 V
- Operating voltage
230/400 V
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1845542 Hager CDS463D CDS463D RCCB A 4-pin 0.03 A
User & Safety Instructions
User & Safety Instructions 1845542 Hager CDS463D CDS463D RCCB A 4-pin 0.03 A
Description
Residual current circuit breaker 4-pole 6kA 63A 30mA Type A Quick Connect
Residual current protective switch according to EN 61008-1, DIN EN 61008-2-1 and VDE 0664 part 10 + 11. Quick Connect
Terminal according to DIN EN 60898-1, VDE 0641-11 at the access to 63 A, contact protection IP2x according to DIN VDE
0106 Part 100, blue test button and fault current display. Simple single removal from the
Phase rail network. With VDE. Suitable for subsequent installation of additional facilities.
Labelling option directly on the device. Suitable for subsequent installation of additional facilities.
This text is machine translated.
Residual current protective switch according to EN 61008-1, DIN EN 61008-2-1 and VDE 0664 part 10 + 11. Quick Connect
Terminal according to DIN EN 60898-1, VDE 0641-11 at the access to 63 A, contact protection IP2x according to DIN VDE
0106 Part 100, blue test button and fault current display. Simple single removal from the
Phase rail network. With VDE. Suitable for subsequent installation of additional facilities.
Labelling option directly on the device. Suitable for subsequent installation of additional facilities.
This text is machine translated.
