Hager CFA225D CFA225D RCCB A 2-pin 25 A 0.3 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Switch-off capacity
6 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198862 Hager CFA225D CFA225D RCCB A 2-pin 25 A 0.3 A 230 V
User & Safety Instructions
User & Safety Instructions 3198862 Hager CFA225D CFA225D RCCB A 2-pin 25 A 0.3 A 230 V
Description

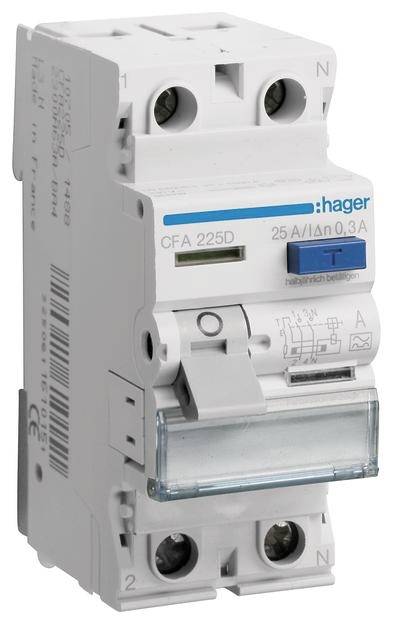

Residual current circuit breaker 2-pin 6kA 25A 300mA type A. Residual current circuit breaker according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button and fault current display. Suitable for add-on installation of additional devices. Connection terminals with wire slide-in protection, labeling possibility directly on the device.
