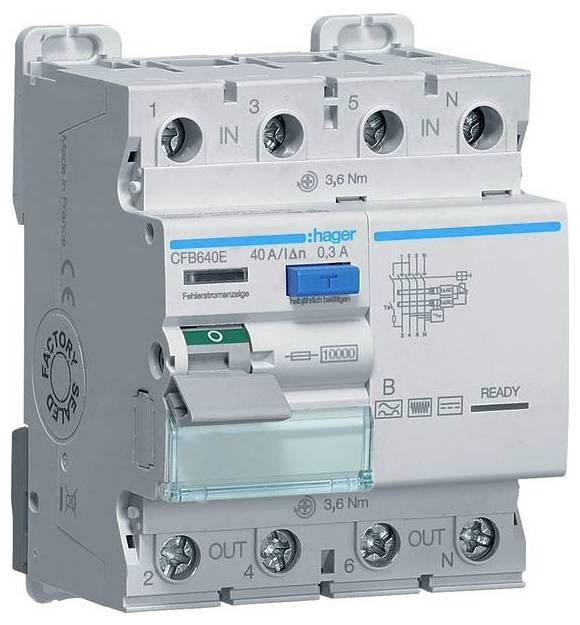

Hager CFB640E CFB640E RCCB RCD (all types of current) B 40 A 0.3 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
B
Differential current rating
0.3 A
Nominal current - rounded value
40 A
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.3 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(L x W x H) 70 x 80.0000 x 80.0000 mm
- Model
RCD (all types of current)
- Switch-off capacity
10 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal voltage
230 V
400 V
- Width
80.0000 mm
- Height
80.0000 mm
- Length
70 mm
- Depth
100.0000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893725 Hager CFB640E CFB640E RCCB RCD (all types of current) B 40 A 0.3 A 230 V, 400 V
Description
Residual power circuit breaker 4-pin 10kA 40A 300mA type B. All current sensitive residual current - protection switch (FI, RCCB) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11), DIN EN 61543 (VDE 0664-30) and DIN EN 62423 (VDE 0664-40). Short-time delayed FI for protection against smooth leakage and alternating error currents in the frequency range up to 2 kHz. To meet the requirements of the installation standards DIN VDE 0100-410 and DIN VDE 0100-530. Suitable for add-on installation of additional devices. Connection terminals with bi-connect terminals below, external blue test button, type B. Operating display, top and bottom rail slides for easy installation. Labelling possibility directly on the device.
