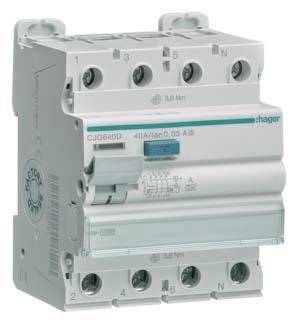

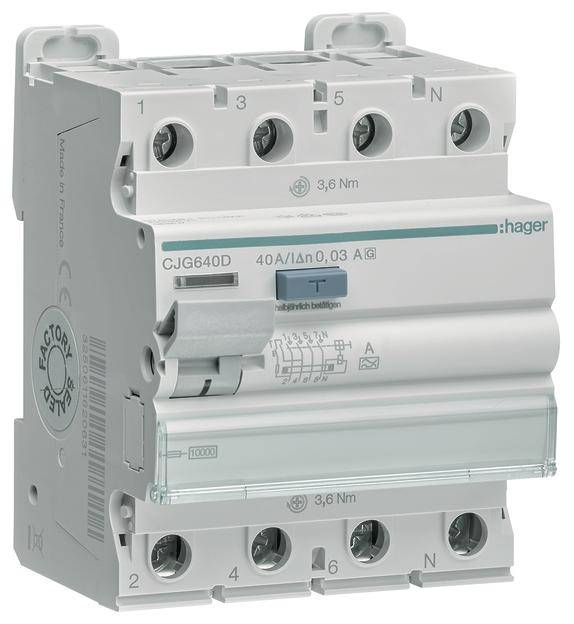

Hager CJG640D CJG640D RCCB A 4-pin 40 A 0.03 A 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Switch-off capacity
10 kA
- Content
1 pc(s)
- Nominal voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3200233 Hager CJG640D CJG640D RCCB A 4-pin 40 A 0.03 A 400 V
User & Safety Instructions
User & Safety Instructions 3200233 Hager CJG640D CJG640D RCCB A 4-pin 40 A 0.03 A 400 V
Description
Residual current circuit breaker 4-pin 10kA 40A 30mA type A G. residual current circuit breaker according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with bi-connect terminals at the bottom, external blue test button and fault current display. Suitable for add-on installation of additional devices. Connection terminals with wire slide-in protection, labeling possibility directly on the device.
