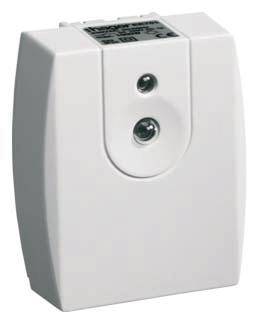

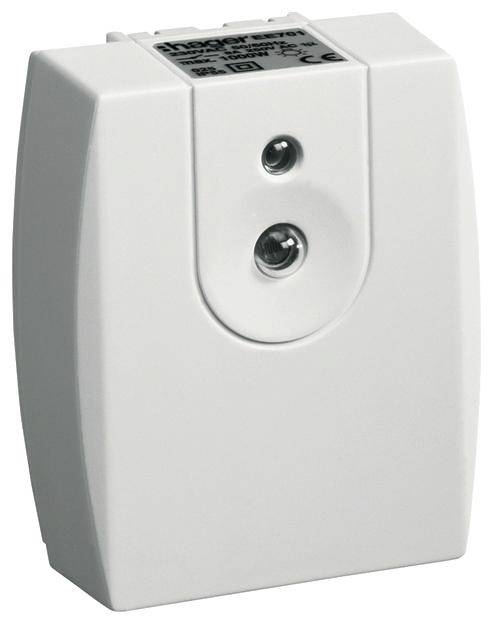

Hager EE701 Twilight switch White 230 V 120 s (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Switching current: 8 A
- Product type
Twilight switch
- Operating voltage
230 V
- Switching capacity (light bulbs)
1000 W
- Switching capacity (halogen bulbs)
1000 W
- Timing range (max.)
120 s
- Timing range
120 s (max)
- Factory colour
White
- Dim
(W x H x D) 42.50 x 95 x 42.50 mm
- Width
42.50 mm
- Height
95 mm
- Depth
42.50 mm
230 V
Surface mounted (plaster)
White
TRUE
Other
Other
Plastic
-25-45 °C
9010
FALSE
Matt
IP55
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3201136 Hager EE701 Twilight switch White 230 V 120 s (max)
User & Safety Instructions
User & Safety Instructions 3201136 Hager EE701 Twilight switch White 230 V 120 s (max)
Description
Twilight switch compact for surface mounting Compact twilight switch in surface-mounted housing. The intensity of light is measured via a photocell. Depending on the set value, the twilight switch switches the circuit on or off.
