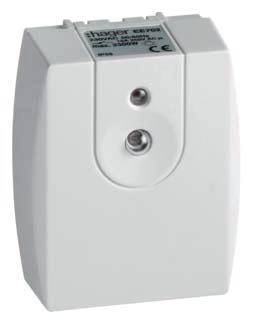

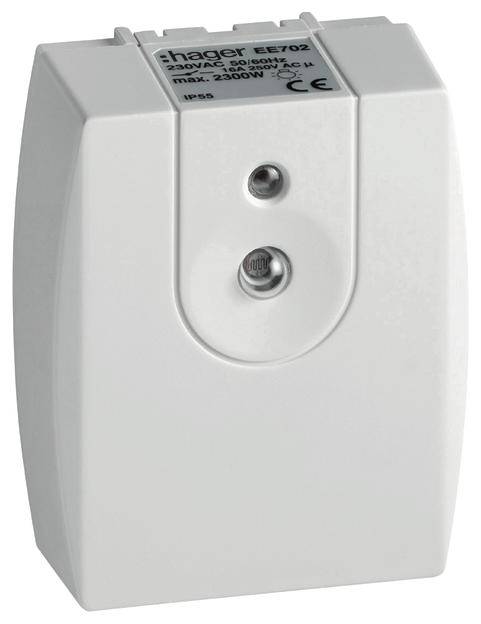

Hager EE702 Twilight switch White 230 V 40 s (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Twilight switch
- Operating voltage
230 V
- Switching capacity (light bulbs)
2300 W
- Switching capacity (halogen bulbs)
2300 W
- Timing range (max.)
40 s
- Timing range
40 s (max)
- Factory colour
White
- Dim
(W x H x D) 42.50 x 95 x 42.50 mm
- Width
42.50 mm
- Height
95 mm
- Depth
42.50 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3201137 Hager EE702 Twilight switch White 230 V 40 s (max)
User & Safety Instructions
User & Safety Instructions 3201137 Hager EE702 Twilight switch White 230 V 40 s (max)
Description
Comfort twilight switch for surface mounting The twilight switch measures the intensity of light via a photo cell and switches a circuit on or off depending upon the measured and the set value. With surface-mounting sensor or fitted sensor.
