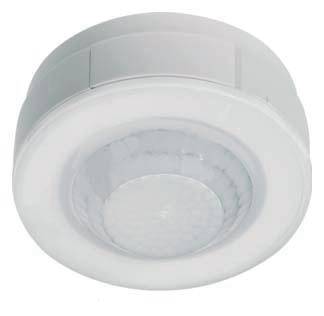

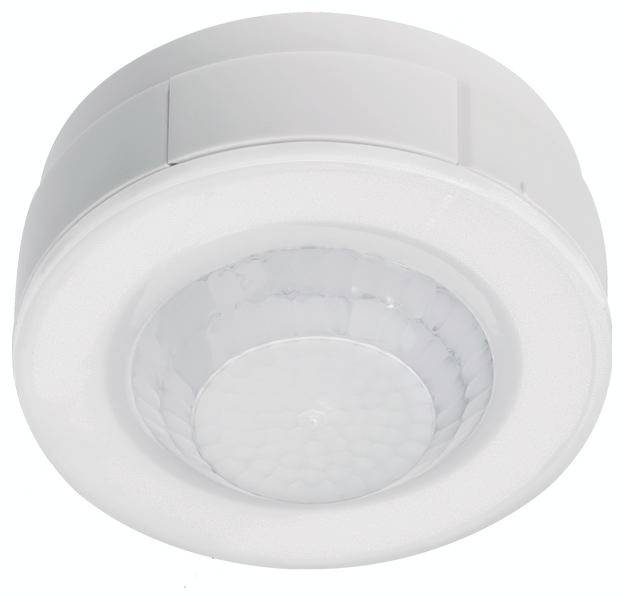

Hager EE804A Surface-mount Motion detector 360 ° White IP21
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Optimum mounting height 4 m.
- Product type
Motion detector
- Detection angle
360°
6 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Time settings
5 s - 30 h min
- Factory colour
White
- Similar RAL
9001
IP21
- Weight
450 g
Surface mounted (plaster)
Movement sensor
50-60 MHz
FALSE
Thermoplastic
6 m
6 m
10 A
Plastic
TRUE
TRUE
FALSE
FALSE
TRUE
9001
FALSE
TRUE
TRUE
FALSE
IP21
FALSE
Matt
360-360°
5 s
30 min
TRUE
4 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2819887 Hager EE804A Surface-mount Motion detector 360 ° White IP21
User & Safety Instructions
User & Safety Instructions 2819887 Hager EE804A Surface-mount Motion detector 360 ° White IP21
Description
Motion detector 360° surface-mounted, NO contact with zero-crossing switching. 360°-motion detector with increased capturing sensitivity in the central presence detection range with integrated twilight switch for surface mounting. For use indoors, e.g. corridors, halls or similar. The detector responds to the infrared radiation (body heat) of moving bodies in a detection diameter of 6 m at a recommended installation height of 2.5 m. The message is generated using the built-in pyroelectric sensor. Setting the brightness and the on-time via potentiometer under an opening on the housing. Ready for immediate operation thanks to the factory default setting. Test mode for checking function and detection range.
