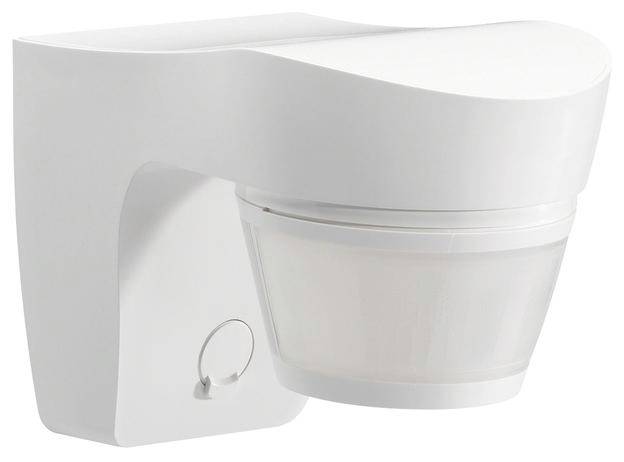

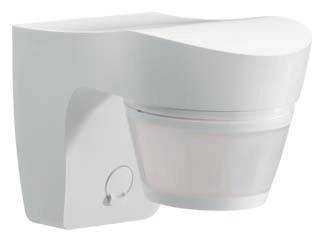

Hager EE820 Surface-mount Motion detector 140 ° White IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Optimum mounting height 4 m.
- Product type
Motion detector
- Detection angle
140°
16 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Time settings
5 s - 15 min
- Factory colour
White
- Similar RAL
9010
IP55
- Width
100.0000 mm
- Height
110.0000 mm
- Dim
(W x H) 100.0000 mm x 110.0000 mm
- Weight
0.2850
Surface mounted (plaster)
White
Movement sensor
TRUE
97 mm
50-60 MHz
0 mm
Thermoplastic
Plastic
9010
0 mm
IP55
Matt
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3201260 Hager EE820 Surface-mount Motion detector 140 ° White IP55
User & Safety Instructions
User & Safety Instructions 3201260 Hager EE820 Surface-mount Motion detector 140 ° White IP55
Description
Outdoor motion detector 140° IP55, surface-mounted, white. Outdoor motion detector for lighting control in commercial buildings and residential buildings by means of the detection of moving persons. Coverage area of 140° and a range of max. 16m at a recommended installation height of 2.5 m. Horizontal lens adjustment of +/- 80° and vertical lens adjustment of 0-30° possible. Detection using Fresnel lenses. The surveillance area can be restricted using the supplied apertures. The time delay and brightness value are set directly on the device; an impulse can also be generated. Mounting on ceiling and corners is possible with the help of optional mounting adapter EE825 or EE827.
