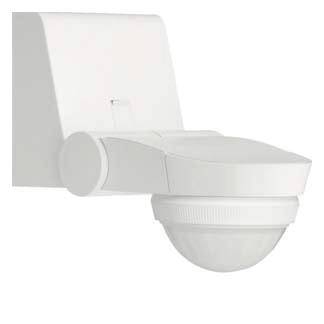

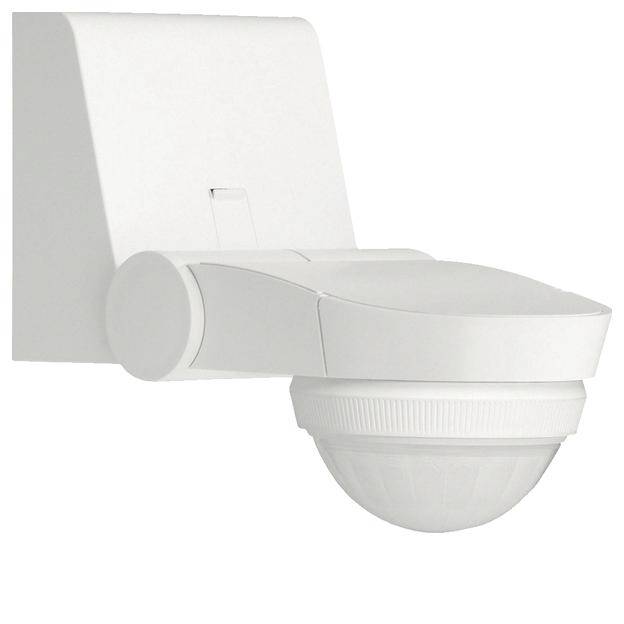

Hager EE840 Surface-mount Motion detector 360 ° Relay White IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Optimum mounting height 2.5 m.
- Product type
Motion detector
- Detection angle
360°
12 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Contact type
Relay
- Time settings
5 s - 15 min
- Factory colour
White
- Similar RAL
9010
IP55
- Width
95.0000 mm
- Height
125.0000 mm
- Dim
(W x H) 95.0000 mm x 125.0000 mm
- Weight
0.3590
Surface mounted (plaster)
White
91
Movement sensor
TRUE
134 mm
153 mm
Other
Untreated
AC
0 mm
50-60 MHz
0 mm
0 mm
0 mm
Thermoplastic
Plastic
9010
0 mm
IK03
IP55
Matt
FALSE
0
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3201534 Hager EE840 Surface-mount Motion detector 360 ° Relay White IP55
User & Safety Instructions
User & Safety Instructions 3201534 Hager EE840 Surface-mount Motion detector 360 ° Relay White IP55
Description
Outdoor motion detector 360° IP55 white Outdoor motion detector for lighting control in commercial buildings and residential buildings by means of the detection of moving persons. Coverage of 360° with protection against creepers for local detection and a diameter of max. 12 m with a recommended installation height of 2.5 m. Vertical lens adjustment of + 90°/-30° possible. Detection using Fresnel lenses. The time delay and brightness value can be adjusted directly on the device or adjusted via optional remote control EE 806 , a pulse can also be generated. Adjustable sensitivity from 20% to 100% Additional potential free normally open contact is available. Wall and ceiling mounting possible. At corners, possible using optional EE855 mounting adapter.
