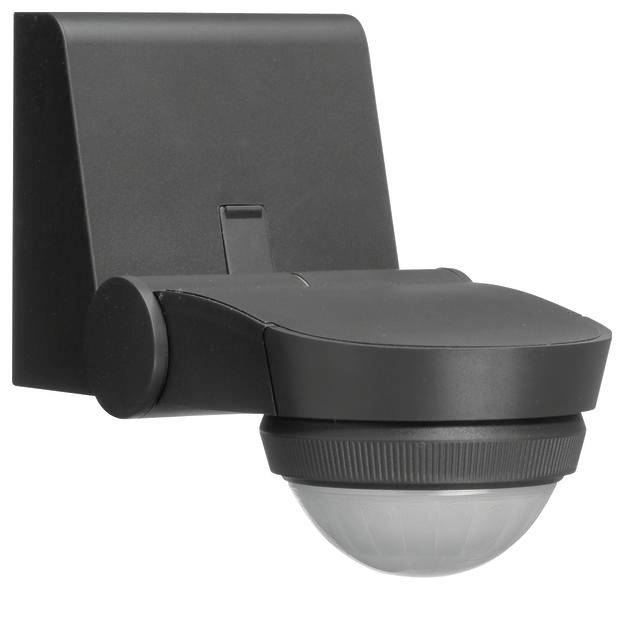

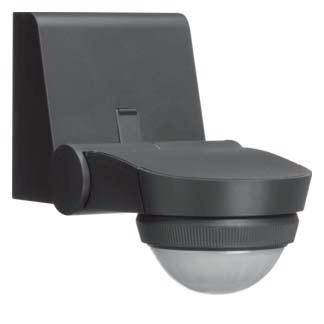

Hager EE841 Surface-mount Motion detector 360 ° Anthracite IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Optimum mounting height 4 m.
- Product type
Motion detector
- Detection angle
360°
12 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Time settings
5 s - 15 min
- Factory colour
Anthracite
IP55
- Height
4 m
- (Ø)
12 m
- Dim
(Ø x H) 12 m x 4 m
Surface mounted (plaster)
Anthracite
Movement sensor
TRUE
139 mm
50-60 MHz
0 mm
Thermoplastic
Plastic
7016
0 mm
IP55
Matt
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3201535 Hager EE841 Surface-mount Motion detector 360 ° Anthracite IP55
User & Safety Instructions
User & Safety Instructions 3201535 Hager EE841 Surface-mount Motion detector 360 ° Anthracite IP55
Description
Outdoor motion detector 360° IP55, construction, anthracite. Outdoor motion detector for lighting control in commercial buildings and residential buildings by means of the detection of moving persons. Coverage of 360° with protection against creepers for local detection and a diameter of max. 12 m with a recommended installation height of 2.5 m. Vertical lens adjustment of + 90°/-30° possible. Detection using Fresnel lenses. The time delay and brightness value can be adjusted directly on the device or adjusted via optional remote control EE 806 , a pulse can also be generated. Adjustable sensitivity from 20% to 100% Additional potential free normally open contact is available. Wall and ceiling mounting possible. At corners, possible using optional EE855 mounting adapter.
