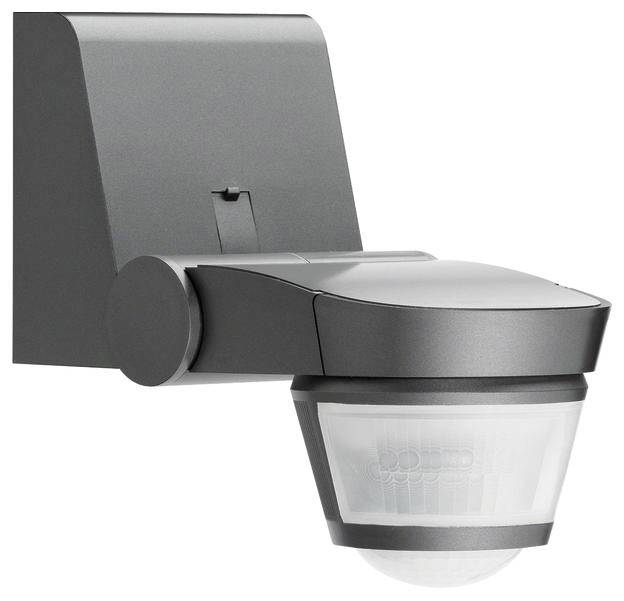

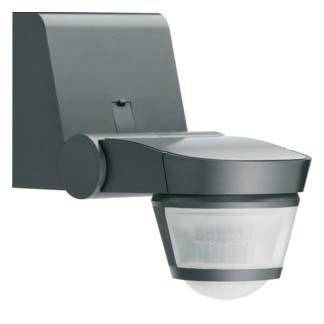

Hager EE871 Surface-mount Motion detector 220 ° Anthracite IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Optimum mounting height 4 m.
- Product type
Motion detector
- Detection angle
220°
16 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Time settings
5 s - 30 h min
- Factory colour
Anthracite
IP55
Surface mounted (plaster)
Anthracite
91
Movement sensor
TRUE
139 mm
50-60 MHz
0 mm
Thermoplastic
16 A
Plastic
7016
0 mm
IP55
Matt
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3201274 Hager EE871 Surface-mount Motion detector 220 ° Anthracite IP55
User & Safety Instructions
User & Safety Instructions 3201274 Hager EE871 Surface-mount Motion detector 220 ° Anthracite IP55
Description
Outdoor motion detector Comfort 220/360° IP55 anthracite. Outdoor motion detector for lighting control in commercial buildings and residential buildings by means of the detection of moving persons. Capturing range of 220° with creep protection for the local capturing and a range of max. 16m at a recommended installation height of 2.5 m. Horizontal lens setting of +/- 80° and vertical lens setting of +90°/-30° possible. Detection using Fresnel lenses. The surveillance area can be restricted using the supplied apertures. The time delay and brightness value can be adjusted directly on the device or adjusted via optional remote control EE 806 , a pulse can also be generated. Adjustable sensitivity from 20% to 100% Additional potential free normally open contact is available. Wall and ceiling mounting possible. At corners with the help of optional mounting adapter EE856 possible.
