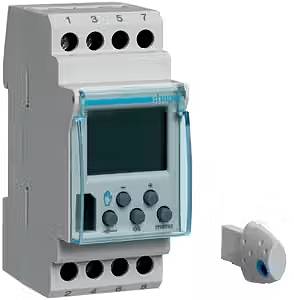

Hager EG103V DIN rail mount timer digital 7 day mode Progammable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DIN rail mount timer
- Type
digital
- Features
Progammable
- Switching cycle
7 day mode
- Width
35 mm
- Height
85 mm
- Dim
(W x H) 35 mm x 85 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3359713 Hager EG103V DIN rail mount timer digital 7 day mode Progammable
Datasheet 3359713 Hager EG103V DIN rail mount timer digital 7 day mode Progammable
User & Safety Instructions
User & Safety Instructions 3359713 Hager EG103V DIN rail mount timer digital 7 day mode Progammable
User & Safety Instructions 3359713 Hager EG103V DIN rail mount timer digital 7 day mode Progammable
Description
Week timer, 1 change-over contact, 16A, 2 PLE, 12/24V, digital.weekly timer, digital 1-channel for time-dependent control of equipment. With programming key for simple implementation of exception programs. With random control and pulse output; temporary and permanent exception control on the device, bar display for quick recognition of day programming; automatic summer/winter time changeover.
