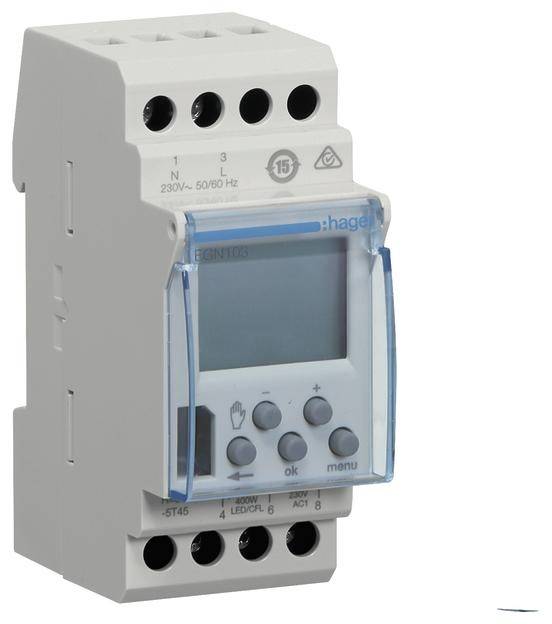

Hager EGN103 DIN rail mount timer digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Hager EGN103 weekly timer 1Changer 16A 2PLE Digital
Technical specifications
- Product type
DIN rail mount timer
- Channels
1-channel
- Type
digital
- Type
EGN103
- Manufacturer part #
EGN103
- Factory colour
Multicolour
- Dim
(W x H x D) 85.0000 x 90 x 61.6000 mm
- Memory slots
56
- Width
85.0000 mm
- Height
90 mm
- Features
Daylight savings control (automatic)
- Switching cycle
7 day mode
- Depth
61.6000 mm
- Weight
0
DIN rail
35.8
90 mm
61.6 mm
Change-over contact (NO/NC)
2
AC
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3195428 Hager EGN103 DIN rail mount timer digital
User & Safety Instructions
User & Safety Instructions 3195428 Hager EGN103 DIN rail mount timer digital
Description
Week timer, 1 change-over contact, 16A, 2 PLE, Digital. Digital weekly timer 1-channel with display for time-dependent control with changeover contact, APP programming possible. Programming on device: Time and date (factory set), automatic summer/winter changeover, temporary and permanent exception control on/off, lockable keyboard via key combination. Bar graph for quick recognition of the day programming. Programming without mains voltage is possible via integrated power reserve (approx. 5 years). Note: Bluetooth programming via APP if the key is inserted in the watch (key not included). Communication protocol keys from version Bluetooth 4.2.
