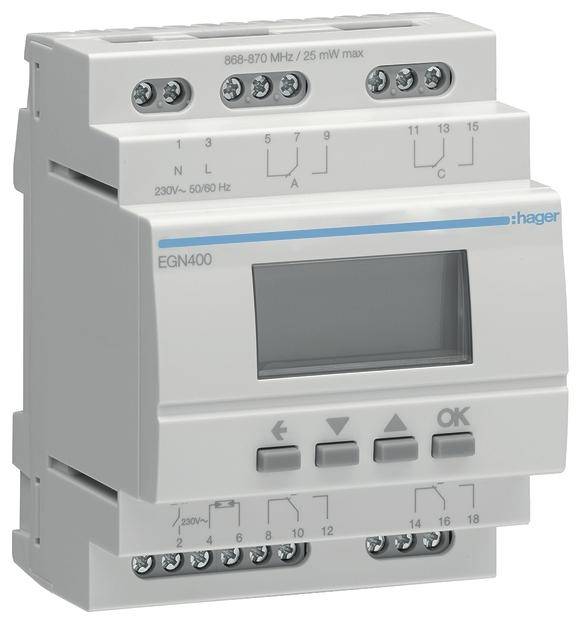

Hager EGN400 DIN rail mount timer digital

Digital multifunction timer with Bluetooth, 4 channels. Digital multi-function time switch 4-channel with illuminated display, integrated Bluetooth function and APP programming for time, brightness and location-dependent control. Can also be used as day, week, year and Astro clock with integrated twilight switch function. Exception control through wired external switches/buttons or KNX wireless switch/button. Programming on device or via APP: Time and date (factory set), automatic summer/winter changeover, public and school vacation times can be selected depending on location, blocking of access via APP or key combination, temporary and permanent exception control on/off/pulse. Programs can be created in the APP, can be transferred from already used templates or exceptions can be activated. A portal can optionally be used for passing on and external storage of the program. Bar graph for quick program detection. Reduction of the contact load through zero-crossing switching Programming without mains voltage is possible via integrated power reserve (approx. 10 years). Note: Communication protocol from version Bluetooth 4.2 and KNX Funk RF Quicklink. Twilight switch function via brightness installation or surface-mounting sensor is not included.

This text is machine translated.
