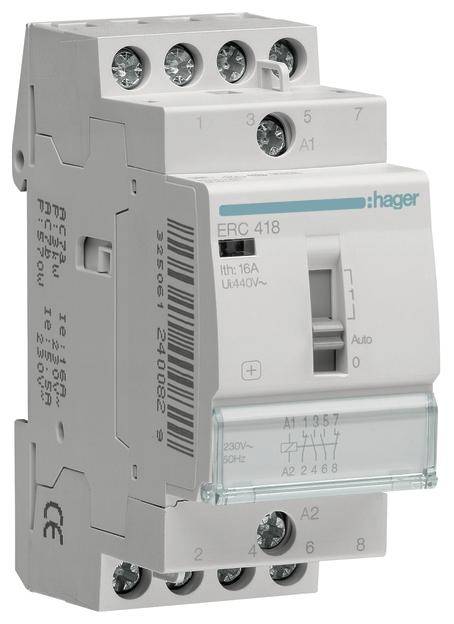

Hager ERC418 Relay 230 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Nominal voltage
230 V
Packaging type
Piece
Type
ERC418
Auxiliary contact type
2 makers
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Relay
- Type
ERC418
- Auxiliary contact type
2 makers
- Nominal voltage
230 V
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Switching voltage (max.)
400 V AC
- Max. switching capacity
1100 W
- Permanent current (max.)
16 A
IP2X
- Depth
60 mm
- Content
1 pc(s)
- Factory colour
Multicolour
60 mm
400-400 V
AC
IP2X
TRUE
2
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194546 Hager ERC418 Relay 230 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194546 Hager ERC418 Relay 230 V Piece 1 pc(s)
Description
Installation relay 16A 2NO and 2 NC 230V. Installation relay in accordance with DIN EN 61095 (DIN VDE 0637-3) for impulse control of current circuits up to max. 16 A. With contact position display through display window, integrated labeling field and suitable for subsequent installation of additional equipment. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
