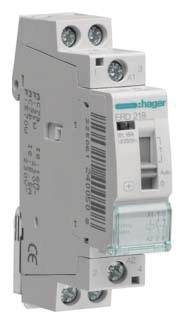

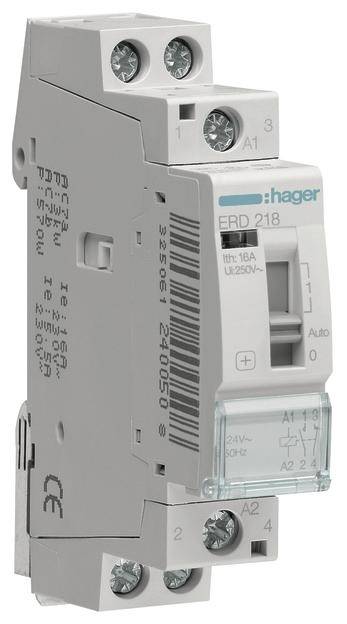

Hager ERD218 Relay 1 maker 1100 W 24 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Nominal voltage
24 V
Power
1100 W
Packaging type
Piece
Type
ERD218
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Relay
- Type
ERD218
- Contact type
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
24 V
- Control voltage (min.)
24 V AC
- Control voltage (max.)
24 V AC
- Control voltage range
24 - 24 V AC
- Switching voltage (min.)
230 V AC
- Switching voltage (max.)
230 V AC
- Max. switching capacity
1100 W
- Permanent current (max.)
16 A
1100 W
IP2X
- Width
50 mm
- Height
100 mm
- Depth
60 mm
- Dim
(W x H x D) 50 x 100 x 60 mm
- Content
1 pc(s)
- Weight
1000 g
60 mm
230-230 V
AC
IP2X
TRUE
1
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194548 Hager ERD218 Relay 1 maker 1100 W 24 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194548 Hager ERD218 Relay 1 maker 1100 W 24 V Piece 1 pc(s)
Description
RELAY 16A 1S + 1Ö 24V. Installation relay in accordance with DIN EN 61095 (DIN VDE 0637-3) for impulse control of current circuits up to max. 16 A. With contact position display through display window, integrated labeling field and suitable for subsequent installation of additional equipment. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
