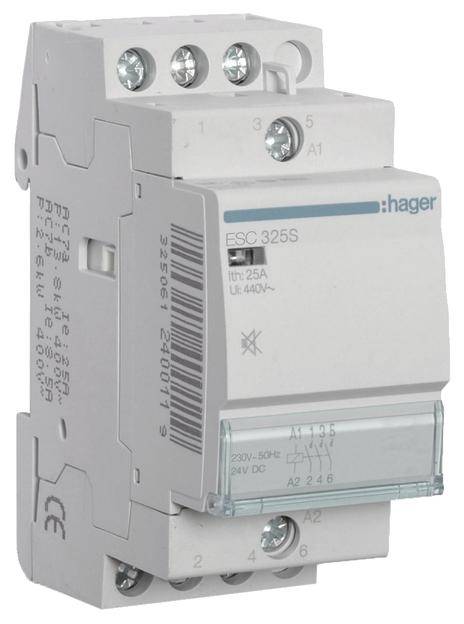

Hager ESC325S Remote switch 3 makers 1900 W 230 V Low noise 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
230 V
Power
1900 W
Type
ESC325S
Contact type
3 makers
Datasheet (PDF)
Technical specifications
- Product type
Remote switch
- Type
ESC325S
- Contact type
3 makers
- Auxiliary contact type
3 makers
1 breaker
- Nominal voltage
230 V
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (min.)
400 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
1900 W
- Permanent current (max.)
25 A
1900 W
- Features
Low noise
IP2X
- Depth
60 mm
- Content
1 pc(s)
60 mm
400-400 V
AC
IP2X
TRUE
0
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194560 Hager ESC325S Remote switch 3 makers 1900 W 230 V Low noise 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194560 Hager ESC325S Remote switch 3 makers 1900 W 230 V Low noise 1 pc(s)
Description
Installation contactor hum-free 25A 3 normally open contact 230V. Bumum-free protection in accordance with DIN EN 61095 (VDE 0637-3) with indicator of position through display window, integrated labeling field and suitable for subsequent installation of additional equipment. DC magnet system with protective circuit against overvoltage and to limit interference voltage peak, for continuous hum-free operation and ensures low switching noise. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
