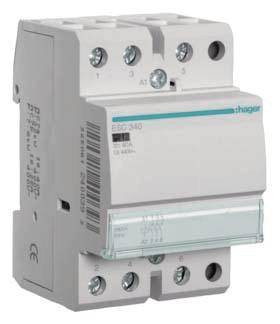

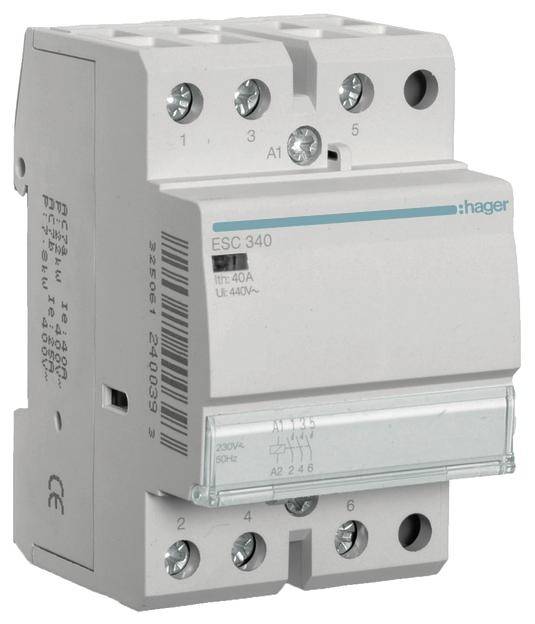

Hager ESC340 Remote switch 3 makers 4000 W 230 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
230 V
Power
4000 W
Packaging type
Piece
Type
ESC340
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
ESC340
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Nominal voltage
230 V
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Switching voltage (max.)
400 V AC
- Max. switching capacity
4000 W
- Permanent current (max.)
40 A
4000 W
- Mounting type
DIN rail
IP2X
- Depth
60 mm
- Content
1 pc(s)
60 mm
400-400 V
AC
IP2X
TRUE
0
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194561 Hager ESC340 Remote switch 3 makers 4000 W 230 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194561 Hager ESC340 Remote switch 3 makers 4000 W 230 V Piece 1 pc(s)
Description
Installation contactor 40A 3 normally open contact 230V. Compact contactor according to DIN EN 61095 (VDE 0637-3) with contact position indicator through display window, integrated labeling field and suitable for the additional assembly. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
