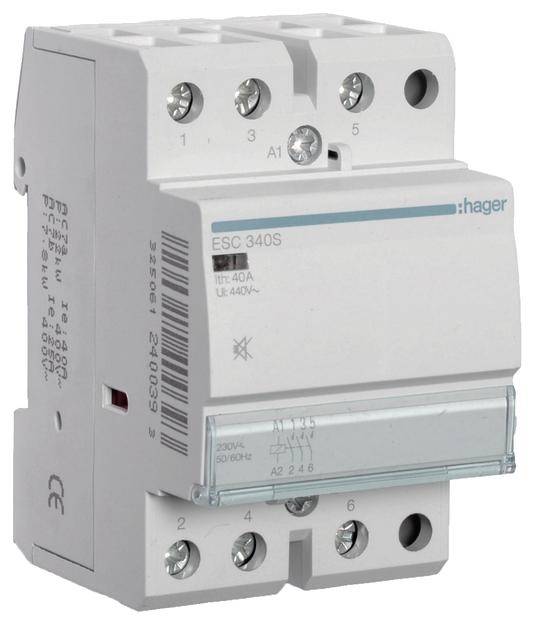

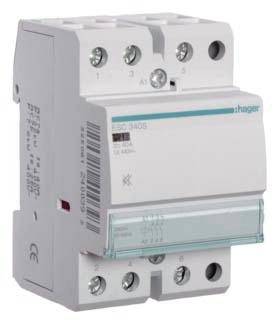

Hager ESC340S Remote switch 3 makers 4000 W 230 V Low noise Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
3-pin
Nominal voltage
230 V
Power
4000 W
Packaging type
Single
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Remote switch
- Type
ESC340S
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Nominal voltage
230 V
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (min.)
400 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
4000 W
- Permanent current (max.)
40 A
4000 W
- Features
Low noise
IP2X
- Depth
60 mm
- Content
1 pc(s)
- Weight
0.34
60 mm
400-400 V
AC
IP2X
TRUE
0
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3194562 Hager ESC340S Remote switch 3 makers 4000 W 230 V Low noise Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194562 Hager ESC340S Remote switch 3 makers 4000 W 230 V Low noise Single 1 pc(s)
Description
Installation contactor hum-free 40A 3 normally open contact 230V. Bumum-free protection in accordance with DIN EN 61095 (VDE 0637-3) with indicator of position through display window, integrated labeling field and suitable for subsequent installation of additional equipment. DC magnet system with protective circuit against overvoltage and to limit interference voltage peak, for continuous hum-free operation and ensures low switching noise. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
