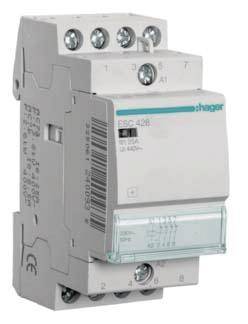

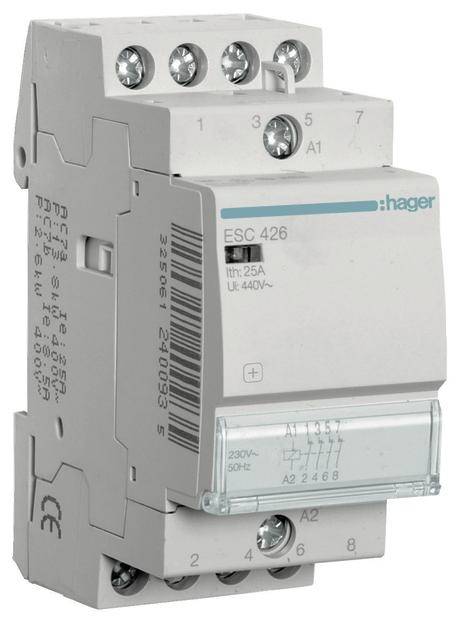

Hager ESC426 Remote switch 4 breakers 1900 W 230 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
230 V
Power
1900 W
Packaging type
Piece
Type
ESC426
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
ESC426
- Contact type
4 breakers
- Auxiliary contact type
4 breakers
- Nominal voltage
230 V
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (min.)
400 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
1900 W
- Permanent current (max.)
25 A
1900 W
- Mounting type
DIN rail
IP2X
- Depth
60 mm
- Content
1 pc(s)
60 mm
400-400 V
AC
IP2X
TRUE
4
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194563 Hager ESC426 Remote switch 4 breakers 1900 W 230 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194563 Hager ESC426 Remote switch 4 breakers 1900 W 230 V Piece 1 pc(s)
Description
Installation protection 25A 4 NC 230V. Compact contactor according to DIN EN 61095 (VDE 0637-3) with contact position indicator through display window, integrated labeling field and suitable for the additional assembly. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
