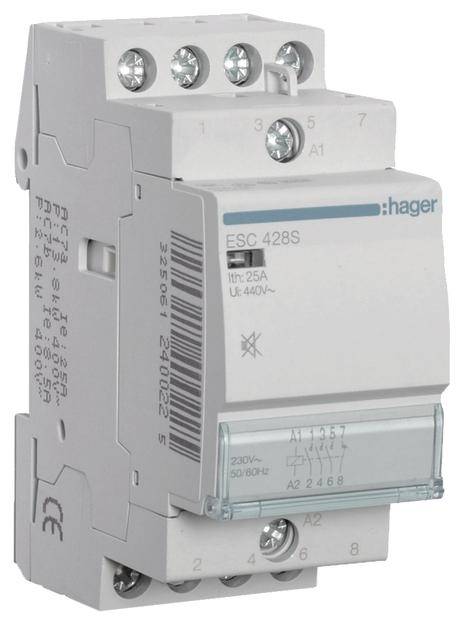

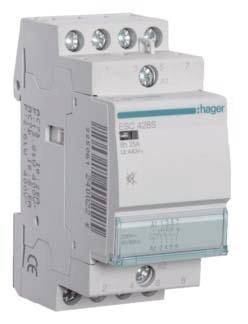

Hager ESC428S Remote switch 3 makers 1990 VA 230 V Low noise Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
230 V
Power
1990 VA
Packaging type
Piece
Type
ESC428S
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
ESC428S
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Nominal voltage
230 V
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (min.)
400 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
1900 W
- Permanent current (max.)
25 A
1990 VA
- Features
Low noise
IP2X
- Width
50 mm
- Height
100 mm
- Depth
60 mm
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Length
150 cm
- Weight
1000 g
60 mm
400-400 V
AC
IP2X
TRUE
1
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3194565 Hager ESC428S Remote switch 3 makers 1990 VA 230 V Low noise Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194565 Hager ESC428S Remote switch 3 makers 1990 VA 230 V Low noise Piece 1 pc(s)
Description
Installation protection hum-free 25A 3NO and 1 NC 230V. Bumum-free protection in accordance with DIN EN 61095 (VDE 0637-3) with indicator of position through display window, integrated labeling field and suitable for subsequent installation of additional equipment. DC magnet system with protective circuit against overvoltage and to limit interference voltage peak, for continuous hum-free operation and ensures low switching noise. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
