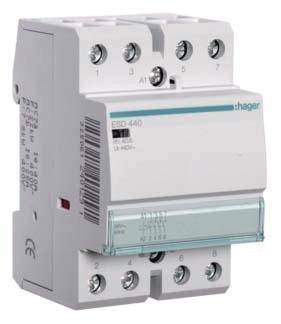

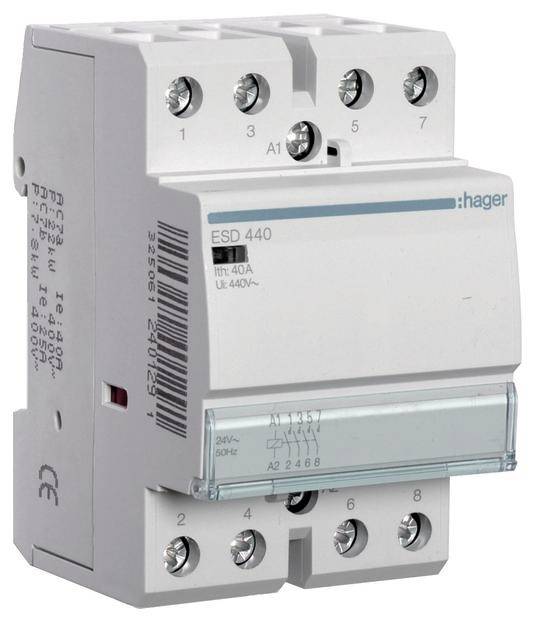

Hager ESD440 Remote switch 4 makers 4000 W 24 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
24 V
Power
4000 W
Packaging type
Piece
Type
ESD440
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
ESD440
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
24 V
- Control voltage (max.)
24 V AC
- Control voltage range
24 V AC (max)
- Switching voltage (max.)
400 V AC
- Max. switching capacity
4000 W
- Permanent current (max.)
40 A
4000 W
- Mounting type
DIN rail
IP2X
- Depth
60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194571 Hager ESD440 Remote switch 4 makers 4000 W 24 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194571 Hager ESD440 Remote switch 4 makers 4000 W 24 V Piece 1 pc(s)
Description
Installation contactor 40A 4 normally open contact 24Vac. Compact contactor according to DIN EN 61095 (VDE 0637-3) with contact position indicator through display window, integrated labeling field and suitable for the additional assembly. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
