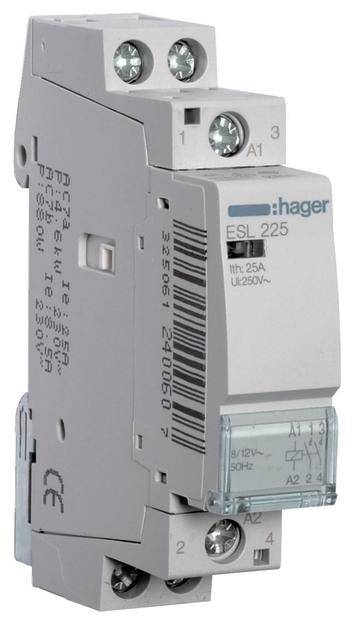

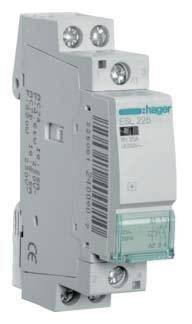

Hager ESL225 Remote switch 2 makers 1990 VA 12 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
12 V
Power
1990 VA
Packaging type
Piece
Type
ESL225
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
ESL225
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
12 V
- Control voltage (min.)
12 V AC
- Control voltage (max.)
12 V AC
- Control voltage range
12 - 12 V AC
- Switching voltage (min.)
230 V AC
- Switching voltage (max.)
230 V AC
- Max. switching capacity
1900 W
- Permanent current (max.)
25 A
1990 VA
- Mounting type
DIN rail
IP2X
- Depth
60 mm
- Content
1 pc(s)
60 mm
230-230 V
AC
IP2X
TRUE
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3194573 Hager ESL225 Remote switch 2 makers 1990 VA 12 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194573 Hager ESL225 Remote switch 2 makers 1990 VA 12 V Piece 1 pc(s)
Description
CONTACTOR 25A 2S 12V Compact contactor according to DIN EN 61095 (VDE 0637-3) with contact position indicator through display window, integrated labeling field and suitable for the additional assembly. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
