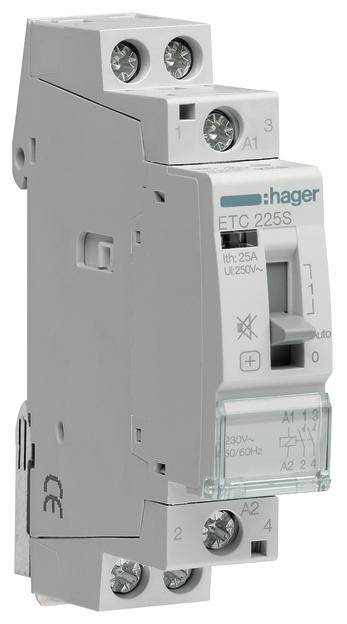

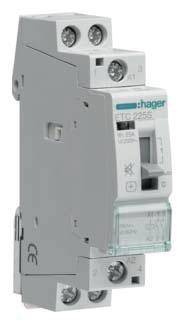

Hager ETC225S Contactor 2 makers 230 V + surge protection Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
Nominal voltage
230 V
Packaging type
Single
Type
ETC225S
Contact type
2 makers
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Contactor
- Type
ETC225S
- Contact type
2 makers
- Nominal voltage
230 V
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Switching voltage (max.)
230 V AC
- Max. switching capacity
1900 W
- Permanent current (max.)
25 A
- Features
+ surge protection
IP2X
- Depth
64 mm
- Content
1 pc(s)
64 mm
230-230 V
AC
IP2X
FALSE
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3194786 Hager ETC225S Contactor 2 makers 230 V + surge protection Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194786 Hager ETC225S Contactor 2 makers 230 V + surge protection Single 1 pc(s)
Description
Installation protection hum-free, manual on/off/auto 25A, 2S, 230V. Humfree contactor with protection against accidental contact according to DIN EN 61095 (DIN VDE 0637 -3) with manual intervention (manual 0 car) on the device, contact position display through display window, integrated labeling field and suitable for the subsequent installation of additional equipment. DC magnet system with protective circuit against overvoltage and to limit interference voltage peak, for continuous hum-free operation and ensures low switching noise. Notes: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
