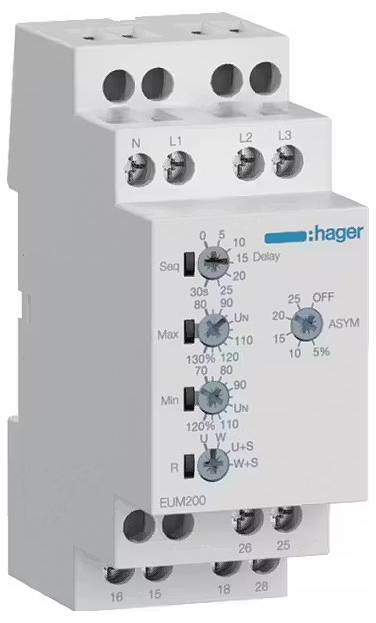

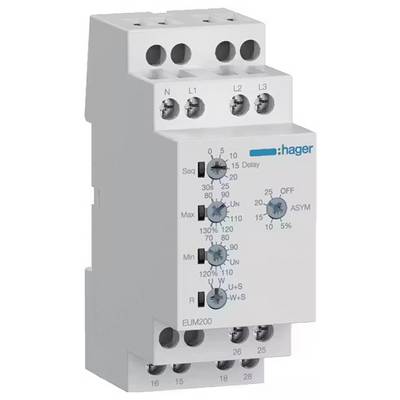

Hager EUM200 EUM200 Monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Monitoring relay
No. of relay outputs
2
Operating voltage
250 V AC
Type
EUM200
Probe inputs
Spannungsmessbereich 1: 520 V. Spannungsmessbereich 1: 161 V. Spannungsmessbereich 2: 230 V. Spannungsmessbereich 2: 400 V. Spannungsart des Messbereichs: AC
Datasheet (PDF)
Technical specifications
- Type
EUM200
- Product type
Monitoring relay
- No. of relay outputs
2
- Probe inputs
Spannungsmessbereich 1: 520 V. Spannungsmessbereich 1: 161 V. Spannungsmessbereich 2: 230 V. Spannungsmessbereich 2: 400 V. Spannungsart des Messbereichs: AC
- Operating voltage
250 V AC
- Dim
(W x H) 35 mm x 87 mm
- Width
35 mm
- Height
87 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3358633 Hager EUM200 EUM200 Monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 3358633 Hager EUM200 EUM200 Monitoring relay No. of relay outputs: 2
Description
Control relay voltage, phase monitoring, adjustable 1P+N / 3P(N) 2 CO contact. Control and monitoring relay for undervoltage and overvoltage in single and three-phase supply (1P+N, 3P+N). Monitoring of adjustable under-, overvoltage and asymmetry, phase sequence, phase loss and neutral fraction. Signalling via two change-over contacts and LEDs DIN rail mounting.
