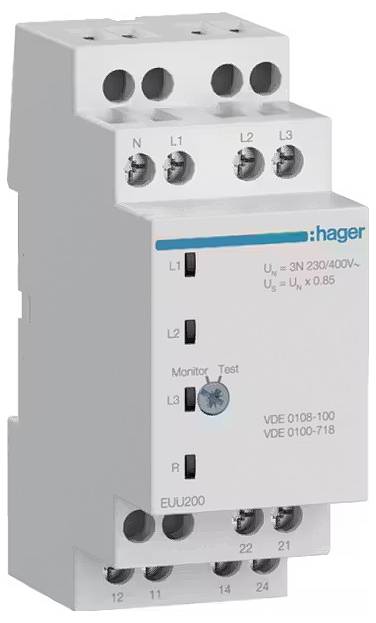

Hager EUU200 EUU200 Monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Monitoring relay
No. of relay outputs
2
Operating voltage
230 V
Type
EUU200
Probe inputs
Spannungsmessbereich 1: 299 V. Spannungsmessbereich 1: 161 V. Spannungsmessbereich 2: 230 V. Spannungsmessbereich 2: 400 V
Datasheet (PDF)
Technical specifications
- Type
EUU200
- Product type
Monitoring relay
- No. of relay outputs
2
- Probe inputs
Spannungsmessbereich 1: 299 V. Spannungsmessbereich 1: 161 V. Spannungsmessbereich 2: 230 V. Spannungsmessbereich 2: 400 V
- Operating voltage
230 V
- Dim
(W x H x D) 35 x 87 x 150 mm
- Weight
1000 g
- Width
35 mm
- Height
87 mm
- Depth
150 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3358249 Hager EUU200 EUU200 Monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 3358249 Hager EUU200 EUU200 Monitoring relay No. of relay outputs: 2
Description
Control relay undervoltage VDE 1P+N/3P+N 2 changeover contact.Control and monitoring relay for undervoltage in single and three-phase networks (L+N, 3L+N) Suitable for systems with emergency power supply and safety lighting according to DIN VDE 0108-0100 and DIN VDE 0100-718. Fixed switching threshold at 0.85 x Un and fixed hysteresis of 5 %. With test function for simulating the low-voltage tripping. Mounting on top-hat rail (DIN rail), with LED signaling.
