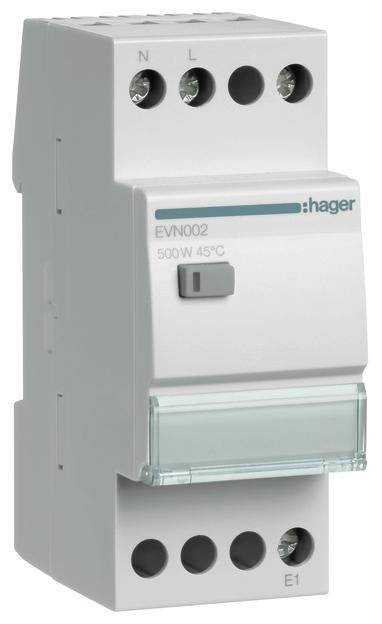

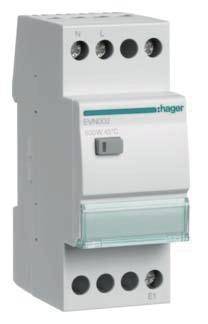

Hager EVN002 DIN-rail dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DIN-rail dimmer
- Operating voltage
230 V
- Suitable for light bulbs
LED bulb
Light bulb
Halogen lamp
- Switching capacity (LED)
100 W
- Switching capacity (light bulbs)
500 W
- Switching capacity (halogen bulbs)
500 W
- Factory colour
Grey
- Dim
(L x W x H) 62 x 62.0000 x 85 mm
- Length
62 mm
- Width
62.0000 mm
- Height
85 mm
- Depth
85.0000 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3201652 Hager EVN002 DIN-rail dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp Grey
User & Safety Instructions
User & Safety Instructions 3201652 Hager EVN002 DIN-rail dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp Grey
Description
Remote dimmer Universal 500W LED/ESL. Remote dimmer for controlling dimmable energy-saving and LED lamps, incandescent lamps, 230V halogen lamps and LV halogen lamps with wrapped or electronic transformer. Automatic load detection by means of detection method and learning function via the external switch. Memory function serves to control the last set value upon switching on. With low space requirement and low standby consumption of 0.2W. Remote control of the dimmer is also possible when illuminated by button. Electronic short circuit and over temperature protection.
