Hager FB3008SN FB3008SN Distribution board Surface-mount No. of rows = 0 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
0
Mounting type
Surface-mount
Width
540 mm
Height
450 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board
- No. of rows
0
- Mounting type
Surface-mount
- Factory colour
Pure white (RAL 9010)
- Width
540 mm
- Height
450 mm
- Dim
(W x H x D) 540 x 450 x 148 mm
- Depth
148 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3198269 Hager FB3008SN FB3008SN Distribution board Surface-mount No. of rows = 0 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3198269 Hager FB3008SN FB3008SN Distribution board Surface-mount No. of rows = 0 Content 1 pc(s)
Description

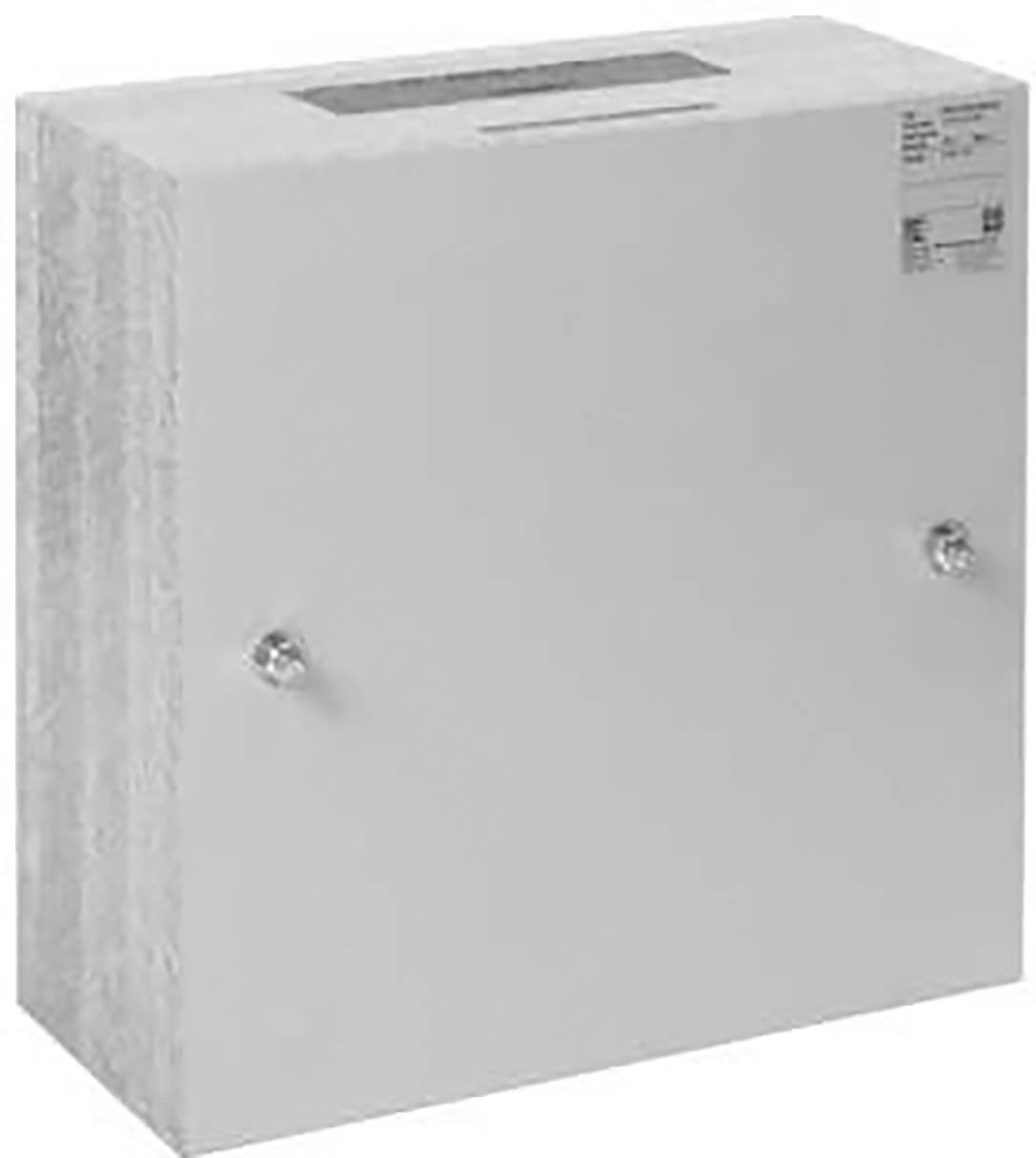

Fire protection small distributor, F90, 450x540x148mm. F90/E30 electrical fire protection terminal box for surface mounting to secure escape and rescue routes for the installation of electrical connection elements. Tests: Fire chamber test was carried out at an official material testing facility. The requirements of MLAR (sample wiring directive 2005) have been met. Building materials according to the requirements of classification A2-s1 d0 of DIN EN 13501-1 are complied with. General approvals (DIBt): Fire resistance class according to a fire resistance duration according to DIN 4102-2 (F90) as well as following DIN 4102-12 (E30). Functional maintenance of electric cables. Terminal box in layered construction consisting of frame panels made from non-flammable fire protection plates according to DIN 4102-1. Closed bottom, lid with grip recess, mounting hardware and opposite cable entry with cable bulkhead, automatically foaming up in case of fire. Pre-drilled holes for easy mounting of the fixtures. Notes: The housing can be fitted with different surfaces (decor/paint/veneer/metal) from the manufacturer.
